RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters

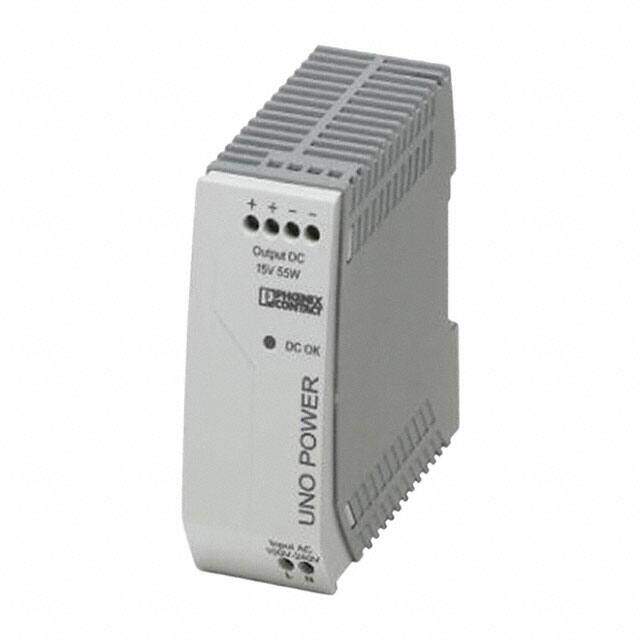

Description DIN Rail Power Supplies UNO-PS/1AC/15DC/ 55W PRIM SWCH SNGL PHASE
PDF
/
Buying Options
Total Price: USD $54.05
Unit Price: USD $54.048677
≥1 USD $54.048677
≥10 USD $50.989318
≥100 USD $48.103133
≥500 USD $45.380315
≥1000 USD $42.811612
Inventory: 964
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 35.052mm
Length 84.074mm
Height 89.916mm

Technical

Min Output Voltage 15V
Current - Output 1 3.7A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 15V
Output Power 55W
Output Current 3.7A
Voltage - Input 85V~264VAC
Current - Output (Max) 3.7A
Voltage - Output 1 15V
Max Output Current 3.7A
Voltage - Isolation 4kV
Efficiency 89%
Approval Agency CB, cUL, cULus, cUR, cURus, UL, UR
Number of Outputs 1
Depth 90mm
Max Power Dissipation 56W
Power (Watts) 56W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature IP20, Universal Input
Size / Dimension 3.31Lx1.38W x 3.54 H 84.0mmx35.0mmx90.0mm
Series UNO
Published 2014
Operating Temperature -25°C~70°C With Derating

Physical

Weight 210g
Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 7 Weeks
