2902999
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

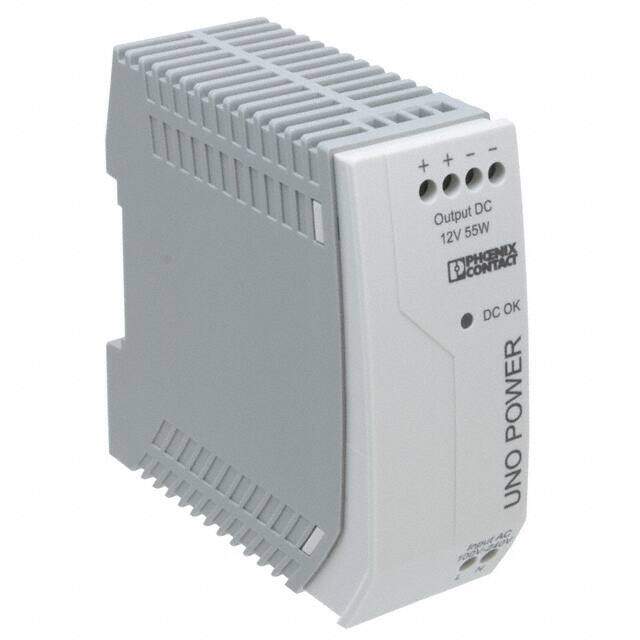

DIN Rail Power Supplies UNO-PS/1AC/12DC/55W PRIM SWCH SNGL PHASE
PDF
/
Buying Options
Total Price: USD $55.99
Unit Price: USD $55.9856
≥1 USD $55.9856
≥10 USD $51.50728
≥100 USD $47.58864
≥500 USD $45.349216
Inventory: 210
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 6
Weight 200g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2009
Series UNO
Size / Dimension 3.54Lx1.38W x 3.54 H 90.0mmx35.0mmx90.0mm
Feature Adjustable Output, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 55W
Depth 35mm
Number of Outputs 1
Approval Agency CB
Efficiency 89%
Voltage - Isolation 4kV
Output Voltage 12V
Max Output Current 4.6A
Voltage - Input 85V~264VAC
Output Current 4.6A
Output Power 55W
Max Output Voltage 12V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 4.6A
Min Output Voltage 12V
Dimensions
Height 89.916mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
