2902998
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

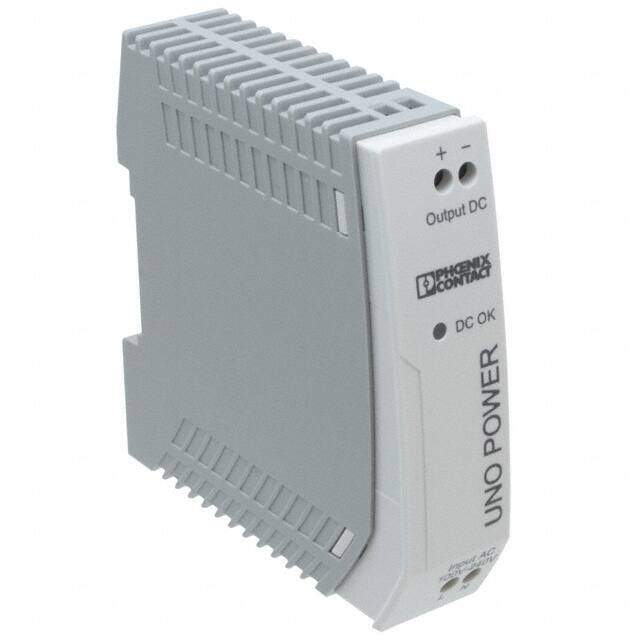

DIN Rail Power Supplies UNO-PS/1AC/12DC/30W PRIM SWCH SNGL PHASE
PDF
/
Buying Options
Total Price: USD $44.95
Unit Price: USD $44.9504
≥1 USD $44.9504
≥10 USD $41.35736
≥100 USD $38.211008
≥500 USD $36.412816
≥1000 USD $36.21288
Inventory: 86
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 22.606mm
Length 84mm
Height 89.916mm
Technical
Min Output Voltage 12V
Current - Output 1 2.5A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 12V
Output Power 30W
Output Current 2.5A
Voltage - Input 85V~264VAC
Current - Output (Max) 2.5A
Voltage - Output 1 12V
Max Output Current 2.5A
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 87%
Approval Agency CB
Number of Outputs 1
Depth 22.5mm
Max Power Dissipation 30W
Power (Watts) 30W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Load Sharing, Universal Input
Size / Dimension 3.54Lx0.89W x 3.54 H 90.0mmx22.5mmx90.0mm
Series UNO
Published 2009
Operating Temperature -25°C~70°C With Derating
Physical
Weight 150g
Number of Pins 4
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
