2902997
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

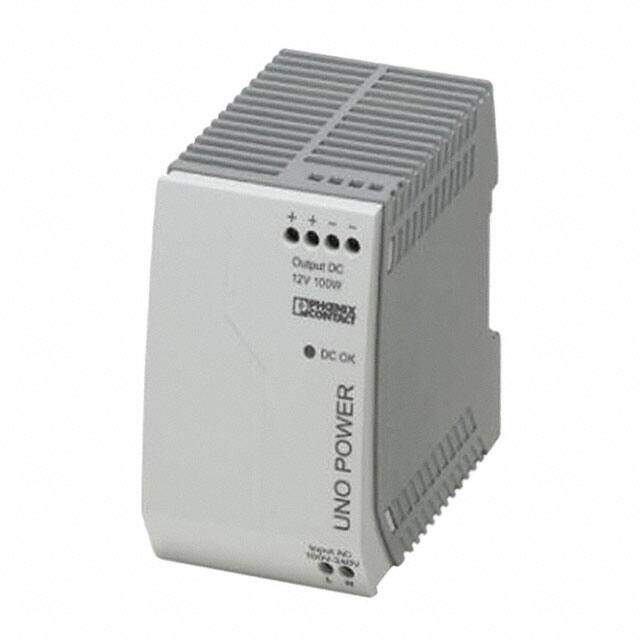

DIN Rail Power Supplies UNO-PS/1AC/12DC/100W PRIM SWCH SNGL PHASE
PDF
/
Buying Options
Total Price: USD $86.52
Unit Price: USD $86.5216
≥1 USD $86.5216
≥10 USD $79.59688
≥100 USD $73.540544
≥500 USD $70.079856
Inventory: 165
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 55.118mm
Length 84.074mm
Height 89.916mm
Technical
Min Input Voltage (AC) 85V
Max Output Power 100W
Current - Output 1 8.3A
Output Power 100W
Voltage - Input 85V~264VAC
Current - Output (Max) 8.3A
Max Voltage Rating (AC) 264V
Voltage - Output 1 12V
Max Output Current 8.3A
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency CB, cUL, cULus, cUR, cURus, UL, UR
Number of Outputs 1
Max Power Dissipation 100W
Power (Watts) 100W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature IP20, Universal Input
Size / Dimension 3.31Lx2.17W x 3.54 H 84.0mmx55.0mmx90.0mm
Series UNO
Published 2014
Operating Temperature -25°C~70°C With Derating
Physical
Package / Case 100
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
