2902994
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

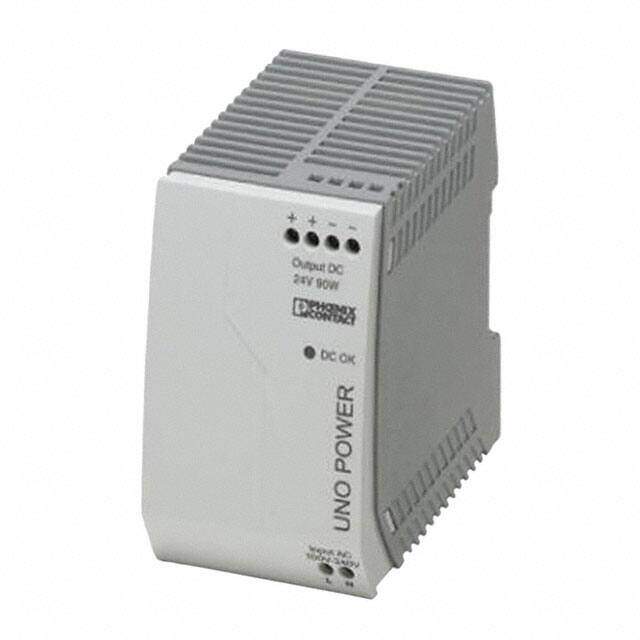

DIN Rail Power Supplies UNO-PS/1AC/24DC90WC2 PRIM SWCH SNGL PHASE
PDF
/
Buying Options
Total Price: USD $80.59
Unit Price: USD $80.5904
≥1 USD $80.5904
≥10 USD $74.13912
≥100 USD $68.49832
≥500 USD $65.27488
Inventory: 248
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 340g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2014
Series UNO
Size / Dimension 3.31Lx2.17W x 3.54 H 84.0mmx55.0mmx90.0mm
Feature IP20, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 90W
Max Power Dissipation 90W
Depth 90mm
Number of Outputs 1
Approval Agency CB, cUL, cULus, cUR, cURus, UL, UR
Efficiency 86%
Voltage - Isolation 4kV
Max Output Current 3.75A
Voltage - Output 1 24V
Max Voltage Rating (AC) 264V
Current - Output (Max) 3.75A
Voltage - Input 85V~264VAC
Output Current 3.75A
Output Power 90W
Max Output Voltage 24V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 3.75A
Min Output Voltage 24V
Max Output Power 90W
Min Input Voltage (AC) 85V
Dimensions
Height 89.916mm
Length 84.074mm
Width 55.118mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
