2902993
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

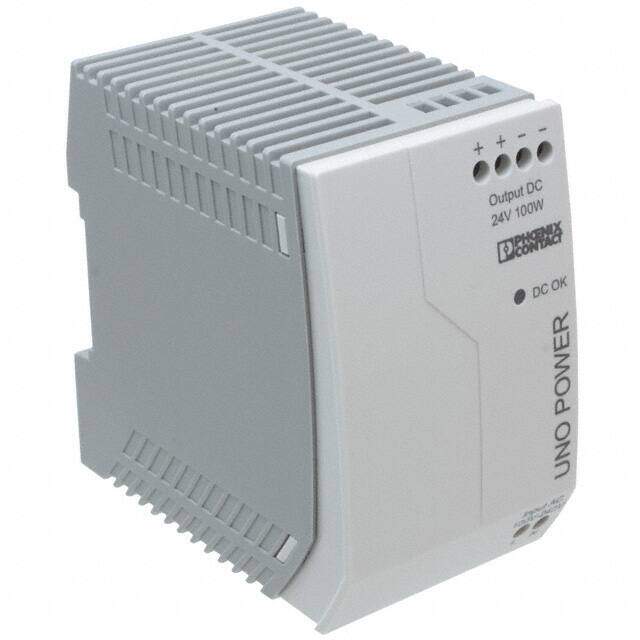

DIN Rail Power Supplies UNO-PS/1AC/24DC/100W PRIM SWCH SNGL PHASE
PDF
/
Buying Options
Total Price: USD $80.59
Unit Price: USD $80.5904
≥1 USD $80.5904
≥10 USD $74.13912
≥100 USD $68.49832
≥500 USD $65.27488
Inventory: 296
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case 100
Number of Pins 6
Weight 340g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2009
Series UNO
Size / Dimension 3.54Lx2.17W x 3.54 H 90.0mmx55.0mmx90.0mm
Feature Adjustable Output, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 100W
Max Power Dissipation 100W
Depth 84mm
Number of Outputs 1
Approval Agency CB
Efficiency 90%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 4.2A
Voltage - Output 1 24V
Max Voltage Rating (AC) 264V
Current - Output (Max) 4.2A
Voltage - Input 85V~264VAC
Output Current 4.2A
Output Power 100W
Max Output Voltage 24V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 4.2A
Min Output Voltage 24V
Min Input Voltage (AC) 85V
Nominal Input Voltage (AC) 240V
Dimensions
Height 90mm
Length 89.916mm
Width 55mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings IP20
