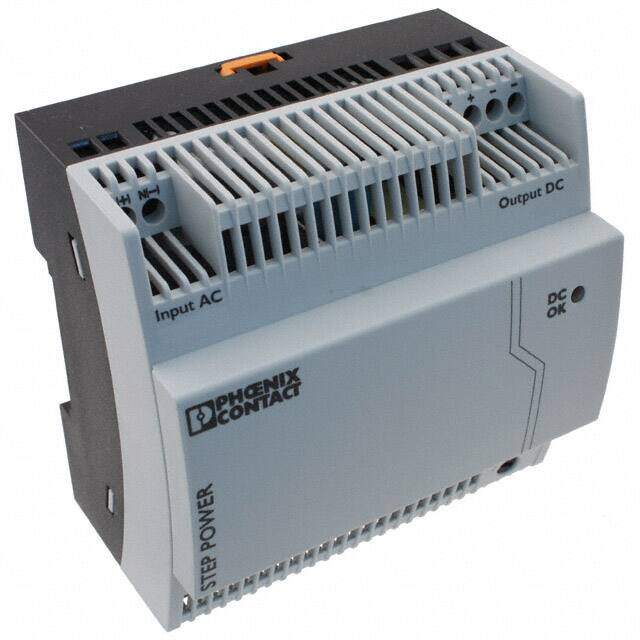

2868664
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 100W
PDF
/
Buying Options
Total Price: USD $153.03
Unit Price: USD $153.032
≥1 USD $153.032
≥10 USD $140.78856
≥100 USD $130.076144
Inventory: 102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail, Panel
Mounting Type DIN Rail
Package / Case 100
Number of Pins 6
Weight 400.000006g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2002
Series Step
Size / Dimension 2.40Lx3.54W x 3.54 H 61.0mmx90.0mmx90.0mm
Feature DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Additional Feature ALSO OPERATES IN 95VDC TO 250VDC
Max Power Dissipation 100W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 90mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Approval Agency CB, UL
Efficiency 88%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 4.2A
Voltage - Output 1 24V
Input Voltage-Nom 100V
Trim/Adjustable Output NO
Voltage - Input 100V~240VAC
Output Current 4.2A
Output Power 101W
Max Output Voltage 29.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 4.2A
Min Output Voltage 22.5V
Dimensions
Height 89.916mm
Compliance
RoHS Status RoHS Compliant
