2868651
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

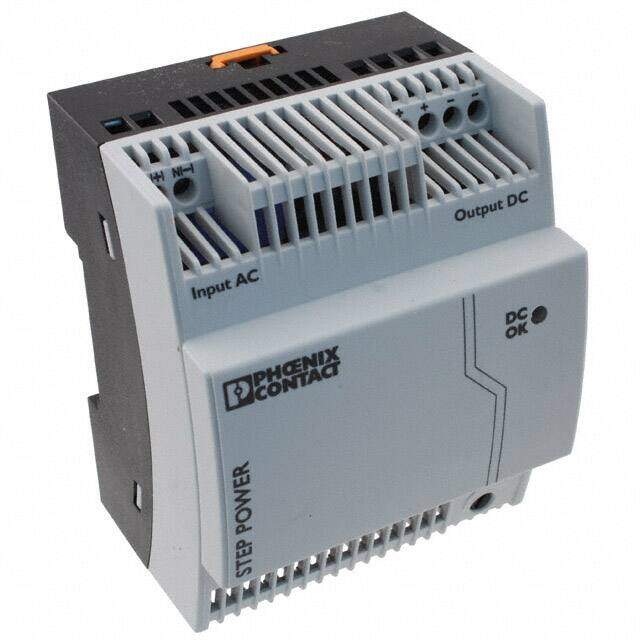

AC/DC CONVERTER 24V 60W
PDF
/
Buying Options
Total Price: USD $110.23
Unit Price: USD $110.2288
≥1 USD $110.2288
≥10 USD $101.41208
≥100 USD $93.69624
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail, Din-Rail
Mounting Type DIN Rail
Weight 300.000012g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2008
Series Step
Size / Dimension 2.40Lx2.83W x 3.54 H 61.0mmx72.0mmx90.0mm
Feature DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 60W
Depth 90mm
Number of Outputs 1
Approval Agency CB, UL
Efficiency 86%
Voltage - Isolation 4kV
Max Output Current 2.5A
Voltage - Output 1 24V
Max Voltage Rating (AC) 264V
Voltage - Input 100V~240VAC
Output Current 2.5A
Output Power 60W
Max Output Voltage 29.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 2.5A
Min Output Voltage 22.5V
Max Input Voltage (DC) 250V
Min Input Voltage (DC) 95V
Min Input Voltage (AC) 85V
Nominal Input Voltage (AC) 240V
Dimensions
Height 89.916mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
