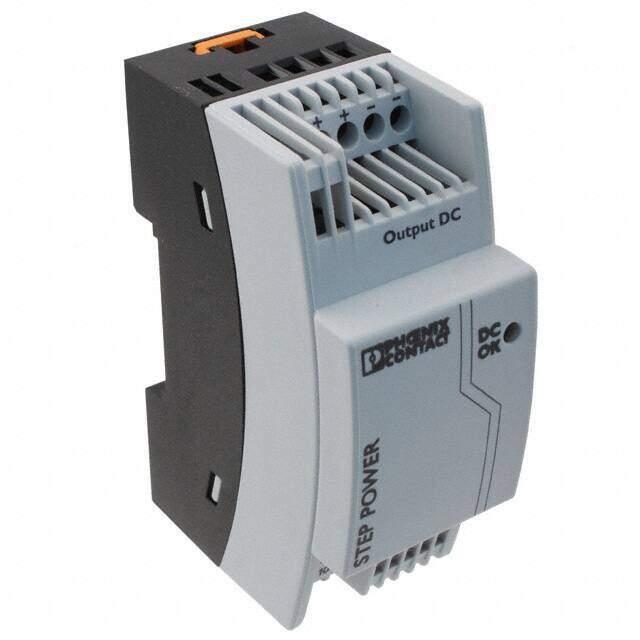

2868635
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 18W
PDF
/
Buying Options
Total Price: USD $63.54
Unit Price: USD $63.536
≥1 USD $63.536
≥10 USD $58.45136
≥100 USD $54.004368
≥500 USD $51.46284
Inventory: 130
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 6
Weight 99.999994g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2008
Series Step
Size / Dimension 2.40Lx1.42W x 3.54 H 61.0mmx36.0mmx90.0mm
Feature DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 18W
Max Power Dissipation 18W
Depth 90mm
Number of Outputs 1
Approval Agency CB, UL
Efficiency 84%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 750mA
Voltage - Output 1 24V
Current - Output (Max) 750mA
Voltage - Input 100V~240VAC
Output Current 750mA
Output Power 18W
Max Output Voltage 24V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 750mA
Min Output Voltage 24V
Dimensions
Height 89.916mm
Length 60.96mm
Width 36.068mm
Compliance
RoHS Status RoHS Compliant
