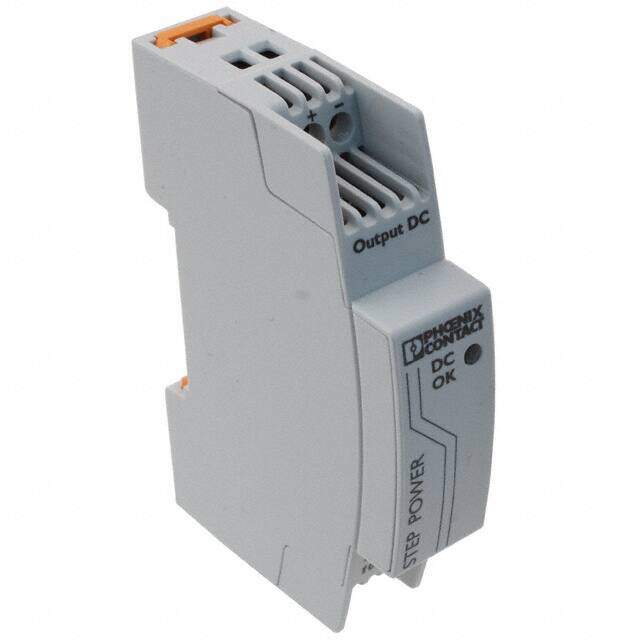

2868596
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 12W
PDF
/
Buying Options
Total Price: USD $60.96
Unit Price: USD $60.9576
≥1 USD $60.9576
≥10 USD $56.08328
≥100 USD $51.816336
≥500 USD $49.377944
Inventory: 54
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 18.034mm
Length 60.96mm
Height 89.916mm
Technical
Nominal Input Voltage (AC) 240V
Min Input Voltage (AC) 85V
Min Input Voltage (DC) 95V
Max Input Voltage (DC) 250V
Min Output Voltage 24V
Current - Output 1 500mA
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 24V
Output Power 12W
Output Current 1A
Voltage - Input 100V~240VAC
Current - Output (Max) 500mA
Max Voltage Rating (AC) 264V
Voltage - Output 1 24V
Max Output Current 500mA
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 84%
Approval Agency CB, UL
Number of Outputs 1
Depth 61mm
Max Power Dissipation 12W
Power (Watts) 12W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 2.40Lx0.71W x 3.54 H 61.0mmx18.0mmx90.0mm
Series Step
Published 2010
Operating Temperature -25°C~70°C With Derating
Physical
Weight 100g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
