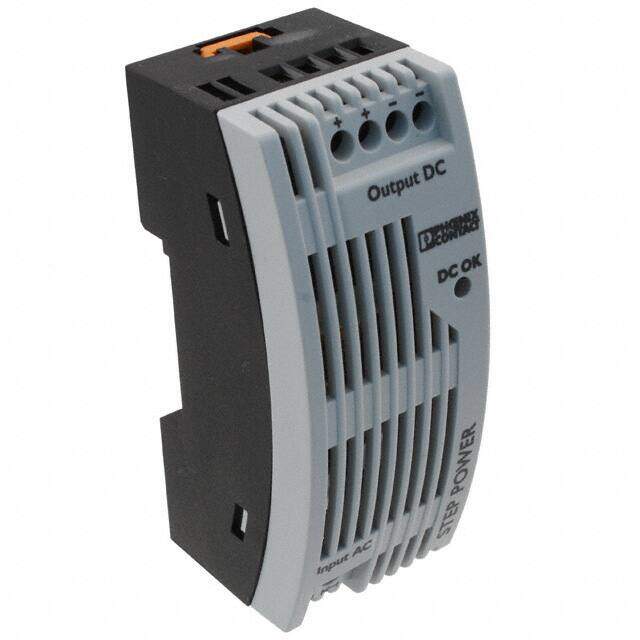

2868554 image
Favorite
2868554 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description AC/DC CONVERTER 12V 18W
PDF
/
Buying Options
Total Price: USD $73.89
Unit Price: USD $73.8936
≥1 USD $73.8936
≥10 USD $67.98264
≥100 USD $62.809824
≥500 USD $59.853992
Inventory: 70
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Mount DIN Rail
Mounting Type DIN Rail
Weight 100g

Technical

Operating Temperature -25°C~70°C With Derating
Published 2009
Series Step
Size / Dimension 1.69Lx1.42W x 3.54 H 43.0mmx36.0mmx90.0mm
Feature DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 18W
Max Power Dissipation 18W
Depth 43mm
Number of Outputs 1
Approval Agency CB, UL
Efficiency 84%
Voltage - Isolation 4kV
Output Voltage 12V
Max Output Current 1.5A
Voltage - Output 1 12V
Current - Output (Max) 1.5A
Voltage - Input 100V~240VAC
Output Current 2.6A
Output Power 18W
Max Output Voltage 12V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 1.5A
Min Output Voltage 12V

Dimensions

Height 89.916mm
Length 42.926mm
Width 36.068mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
