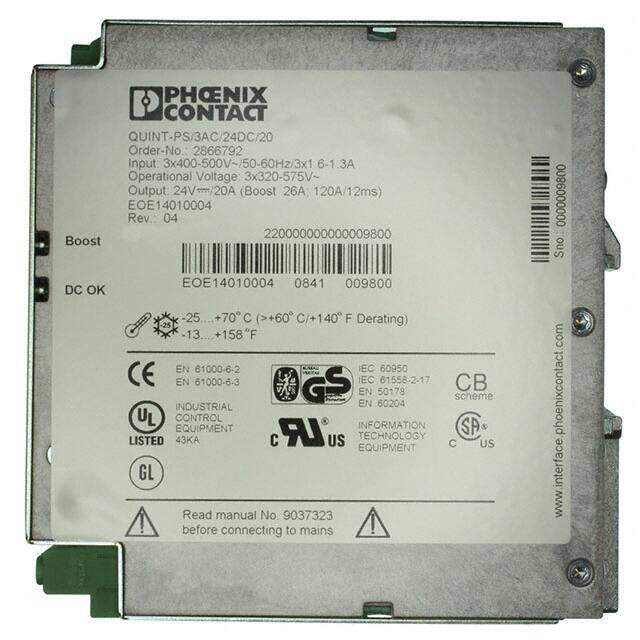

2866792
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 480W
PDF
/
Buying Options
Total Price: USD $700.18
Unit Price: USD $700.1808
≥1 USD $700.1808
≥10 USD $644.16352
Inventory: 143
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 69.088mm
Length 124.968mm
Height 130.048mm
Technical
Minimum Load Required No
Min Output Voltage 18V
Current - Output 1 20A
Max Input Voltage 575V
Min Input Voltage 320V
Max Output Voltage 29.5V
Output Power 480W
Output Current 20A
Voltage - Input 320V~575VAC 3 Phase 360V~575VAC 2 Phase 450V~800VDC
Current - Output (Max) 20A
Voltage - Output 1 24V
Max Output Current 20A
Voltage - Isolation 4kV
Efficiency 93%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Depth 130mm
Max Power Dissipation 480W
Power (Watts) 480W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx2.72W x 5.12 H 125.0mmx69.0mmx130.0mm
Series Quint
Published 2009
Operating Temperature -25°C~70°C With Derating
Physical
Weight 1.886491kg
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
