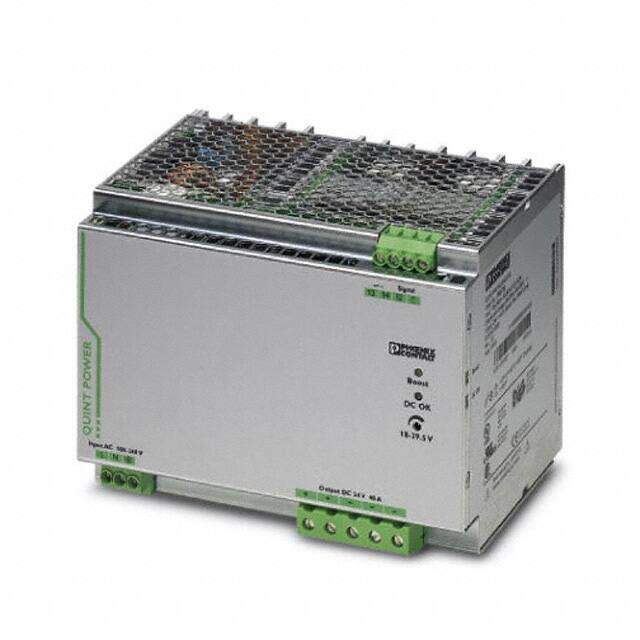

2866789
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 960W
PDF
/
Buying Options
Total Price: USD $1078.29
Unit Price: USD $1078.2904
≥1 USD $1078.2904
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 3.3kg
Technical
Operating Temperature -25°C~70°C With Derating
Published 2012
Series Quint
Size / Dimension 4.92Lx7.09W x 5.12 H 125.0mmx180.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 960W
Depth 130mm
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 92%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 40A
Voltage - Input 85V~264VAC
Output Current 40A
Output Power 960W
Max Output Voltage 29.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 40A
Min Output Voltage 18V
Minimum Load Required No
Dimensions
Height 130.048mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
