RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters

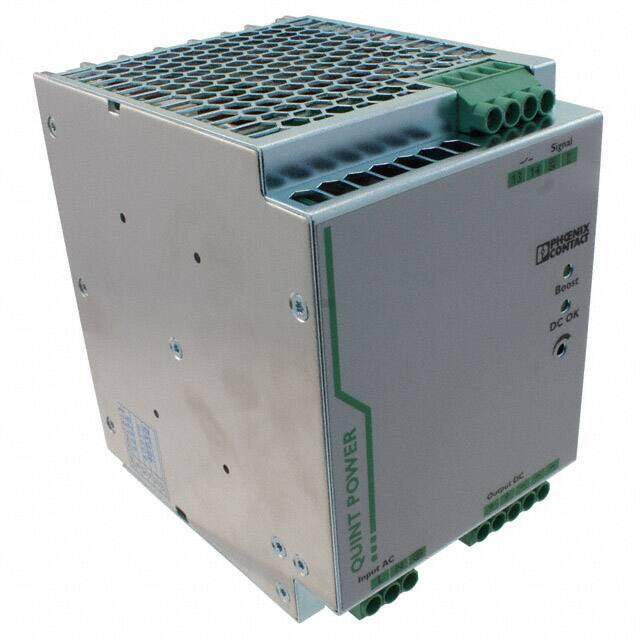

Description AC/DC CONVERTER 24V 480W
PDF
/
Buying Options
Total Price: USD $361.22
Unit Price: USD $361.2224
≥1 USD $361.2224
≥10 USD $354.77552
≥100 USD $343.1648
Inventory: 466
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height 130.048mm

Technical

Minimum Load Required No
Min Output Voltage 18V
Current - Output 1 20A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 29.5V
Output Power 480W
Output Current 20A
Voltage - Input 100V~240VAC
Voltage - Output 1 24V
Max Output Current 20A
Voltage - Isolation 4kV
Efficiency 93%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Depth 130mm
Max Power Dissipation 480W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx3.54W x 5.12 H 125.0mmx90.0mmx130.0mm
Series Quint
Published 2002
Operating Temperature -25°C~70°C With Derating

Physical

Weight 1.000001g
Number of Pins 12
Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 7 Weeks
