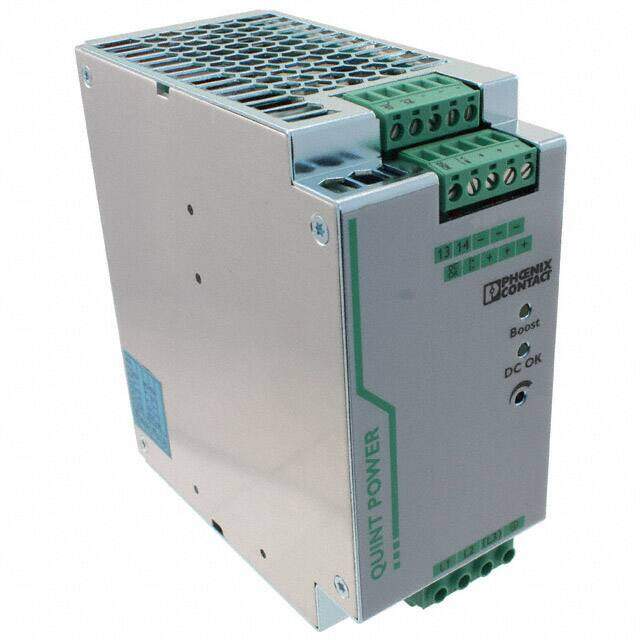

2866763
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 240W
PDF
/
Buying Options
Total Price: USD $257.23
Unit Price: USD $257.2328
≥1 USD $257.2328
≥10 USD $248.36592
≥100 USD $243.931072
Inventory: 340
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 130.048mm
Technical
Minimum Load Required No
Min Output Voltage 18V
Current - Output 1 10A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 29.5V
Output Power 240W
Output Current 10A
Voltage - Input 85V~264VAC 90V~350VDC
Voltage - Output 1 24V
Max Output Current 10A
Voltage - Isolation 4kV
Efficiency 92%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Depth 130mm
Max Power Dissipation 240W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx2.36W x 5.12 H 125.0mmx60.0mmx130.0mm
Series Quint
Published 2002
Operating Temperature -25°C~70°C With Derating
Physical
Weight 1.000001g
Number of Pins 12
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
Alternative Model
