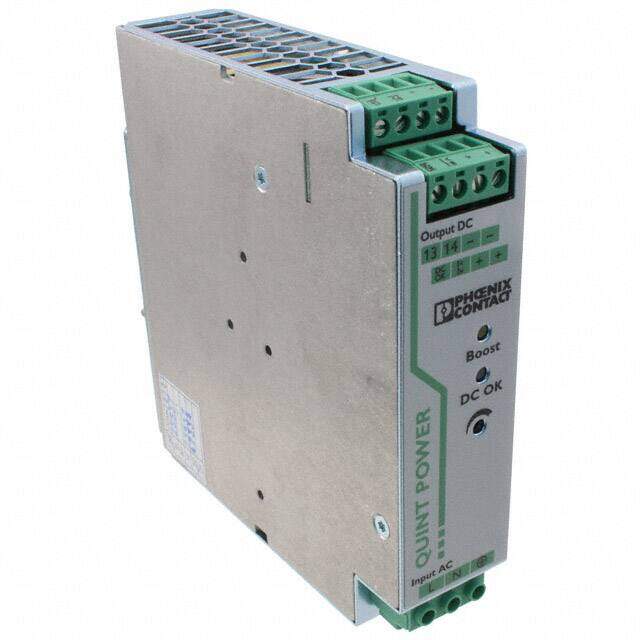

2866747
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 84W
PDF
/
Buying Options
Total Price: USD $238.67
Unit Price: USD $238.6736
≥1 USD $238.6736
≥10 USD $219.57584
Inventory: 125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 12
Weight 499.858792g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2008
Series Quint
Size / Dimension 4.92Lx1.26W x 5.12 H 125.0mmx32.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 84W
Depth 130mm
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 88%
Voltage - Isolation 4kV
Max Output Current 3.5A
Voltage - Output 1 24V
Max Voltage Rating (AC) 264V
Voltage - Input 100V~240VAC
Output Current 3.5A
Output Power 84W
Max Output Voltage 29.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 3.5A
Min Output Voltage 18V
Minimum Load Required No
Max Input Voltage (DC) 350V
Min Input Voltage (DC) 90V
Min Input Voltage (AC) 85V
Nominal Input Voltage (AC) 240V
Dimensions
Height 130mm
Compliance
RoHS Status RoHS Compliant
