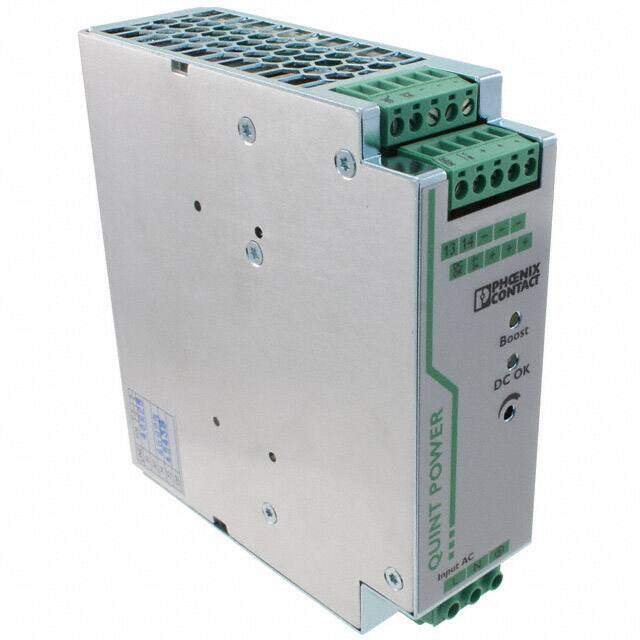

2866734
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 120W
PDF
/
Buying Options
Total Price: USD $364.28
Unit Price: USD $364.2848
≥1 USD $364.2848
≥10 USD $335.1392
Inventory: 64
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 130.048mm
Technical
Minimum Load Required No
Min Output Voltage 18V
Current - Output 1 5A
Max Input Voltage 575V
Min Input Voltage 320V
Max Output Voltage 29.5V
Output Power 120W
Output Current 30A
Voltage - Input 320V~575VAC 3 Phase 360V~575VAC 2 Phase 450V~800VDC
Max Output Current 5A
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 89%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Depth 130mm
Max Power Dissipation 120W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx1.57W x 5.12 H 125.0mmx40.0mmx130.0mm
Series Quint
Published 2010
Operating Temperature -25°C~70°C With Derating
Physical
Weight 699.893027g
Package / Case 120
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
