2866611
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

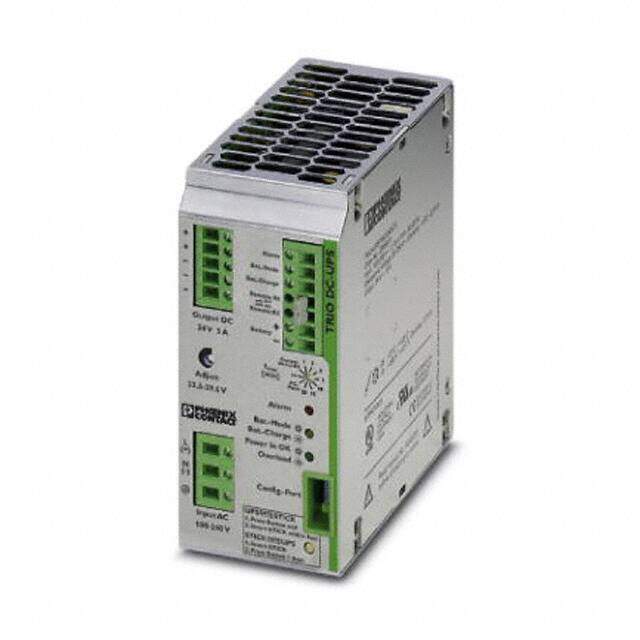

UPS - Uninterruptible Power Supplies TRIO-UPS/1AC/24DC/ 5
PDF
/
Buying Options
Total Price: USD $570.59
Unit Price: USD $570.592
≥1 USD $570.592
≥10 USD $524.94288
Inventory: 109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case 120
Weight 1.000001g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2009
Series TRIO
Size / Dimension 4.65Lx2.36W x 5.12 H 118.0mmx60.0mmx130.0mm
Feature IP20, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 120W
Depth 118mm
Current Rating 5A
Number of Outputs 1
Approval Agency cULus, cURus
Efficiency 86%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 5A
Interface USB
Voltage - Input 85V~264VAC
Output Power 120W
Max Frequency 65Hz
Dimensions
Height 130.048mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
