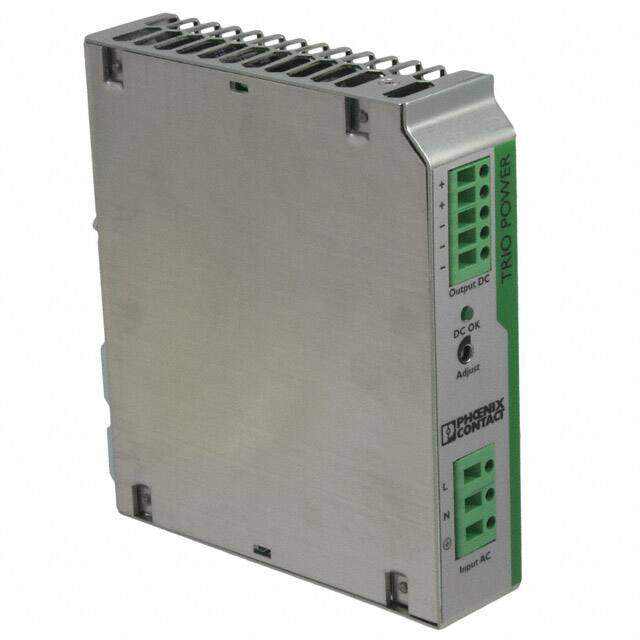

2866475
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Power Supply; AC-DC; 12V; 5A; 85-264VIn; Enclosed; DIN Rail; Industrial; 60W; TRIO Series
PDF
/
Buying Options
Total Price: USD $156.41
Unit Price: USD $156.4112
≥1 USD $156.4112
Inventory: 43
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 32.004mm
Length 115.062mm
Height 130.048mm
Technical
Min Output Voltage 10V
Current - Output 1 5A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 18V
Output Power 60W
Output Current 5A
Voltage - Input 100V~240VAC
Current - Output (Max) 5A
Voltage - Output 1 12V
Max Output Current 5A
Voltage - Isolation 4kV
Efficiency 83%
Approval Agency cULus, cURus, UL
Number of Outputs 1
Depth 130mm
Max Power Dissipation 60W
Power (Watts) 60W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature IP20, Universal Input
Size / Dimension 4.53Lx1.26W x 5.12 H 115.0mmx32.0mmx130.0mm
Series TRIO
Published 2002
Operating Temperature -25°C~70°C
Physical
Weight 499.858792g
Number of Pins 8
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
