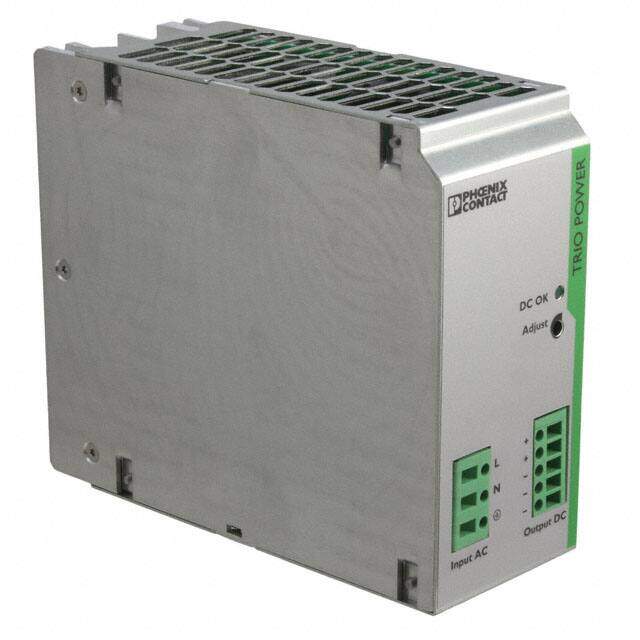

2866459
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 240W
PDF
/
Buying Options
Total Price: USD $367.22
Unit Price: USD $367.2152
≥1 USD $367.2152
≥10 USD $337.83464
Inventory: 67
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 1.299996kg
Technical
Operating Temperature -25°C~70°C
Published 2010
Series TRIO
Size / Dimension 6.00Lx2.36W x 5.12 H 152.5mmx60.0mmx130.0mm
Feature IP20, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 240W
Max Power Dissipation 240W
Depth 130mm
Number of Outputs 1
Approval Agency cULus, cURus, UL
Efficiency 89%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 10A
Voltage - Output 1 24V
Max Voltage Rating (AC) 550V
Current - Output (Max) 10A
Voltage - Input 320V~575VAC 3 Phase 360V~575VAC 2 Phase
Output Current 10A
Output Power 240W
Max Output Voltage 29.5V
Min Input Voltage 320V
Max Input Voltage 575V
Current - Output 1 10A
Min Output Voltage 22.5V
Min Input Voltage (AC) 340V
Nominal Input Voltage (AC) 400V
Dimensions
Height 130.048mm
Length 152.4mm
Width 59.944mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
