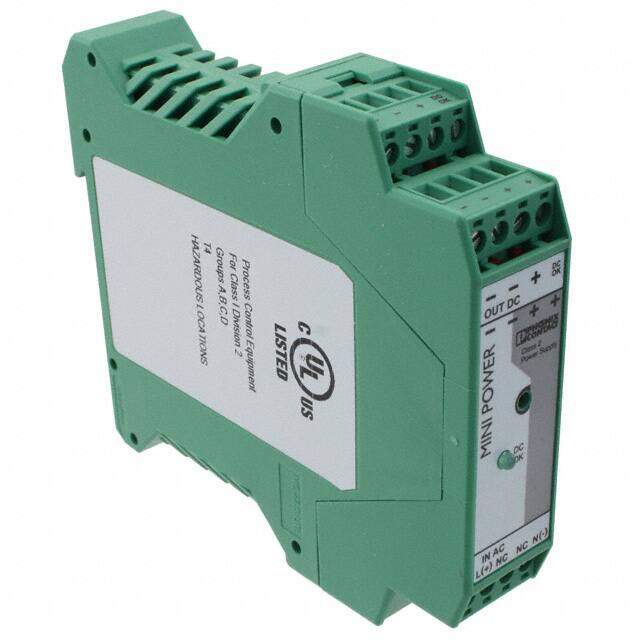

2866446
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 31W
PDF
/
Buying Options
Total Price: USD $157.25
Unit Price: USD $157.251613
≥1 USD $157.251613
≥10 USD $148.350581
≥100 USD $139.953379
≥500 USD $132.031491
≥1000 USD $124.558009
Inventory: 1155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 199.999989g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2008
Series MINI
Size / Dimension 4.21Lx0.89W x 3.90 H 107.0mmx22.5mmx99.0mm
Feature Adjustable Output, Load Sharing, PFC, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
HTS Code 8536.69.40.40
Max Power Dissipation 31W
Depth 99mm
Reach Compliance Code unknown
Number of Outputs 1
Approval Agency cULus, cURus
Efficiency 85%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 1.3A
Voltage - Input 100V~240VAC
Output Current 1.3A
Output Power 31W
Max Output Voltage 28.5V
Min Input Voltage 85V
Max Input Voltage 264V
Safety Approval UL
Current - Output 1 1.3A
Min Output Voltage 22.5V
Wire Cross Section 2.5 mm2
Fastening Method SCREW
Dimensions
Height 99.06mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
