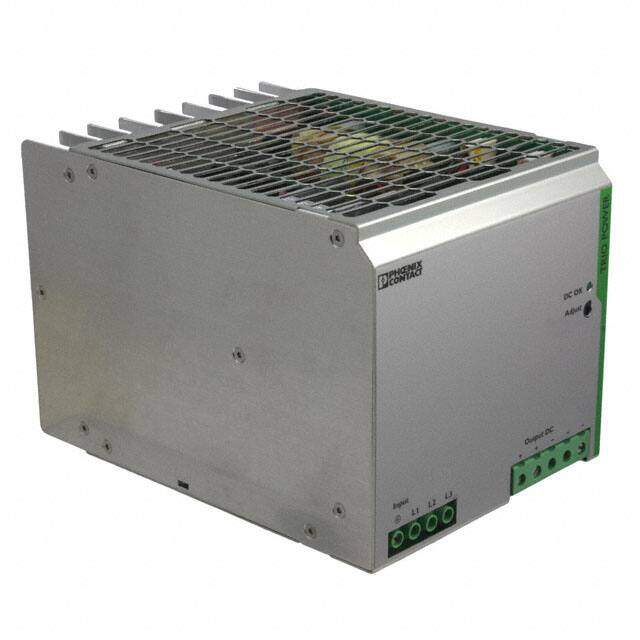

2866404
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 960W
PDF
/
Buying Options
Total Price: USD $809.22
Unit Price: USD $809.2216
≥1 USD $809.2216
≥10 USD $744.48264
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 2.899816kg
Technical
Operating Temperature -25°C~70°C
Published 2010
Series TRIO
Size / Dimension 7.48Lx5.47W x 5.12 H 190.0mmx139.0mmx130.0mm
Feature IP20, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 960W
Depth 130mm
Number of Outputs 1
Approval Agency cULus, cURus, UL
Efficiency 91%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 40A
Max Voltage Rating (AC) 550V
Voltage - Input 320V~575VAC 3 Phase 360V~575VAC 2 Phase
Output Current 40A
Output Power 960W
Max Output Voltage 29.5V
Min Input Voltage 320V
Max Input Voltage 575V
Current - Output 1 40A
Min Output Voltage 22.5V
Min Input Voltage (AC) 340V
Nominal Input Voltage (AC) 400V
Dimensions
Height 130.048mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
