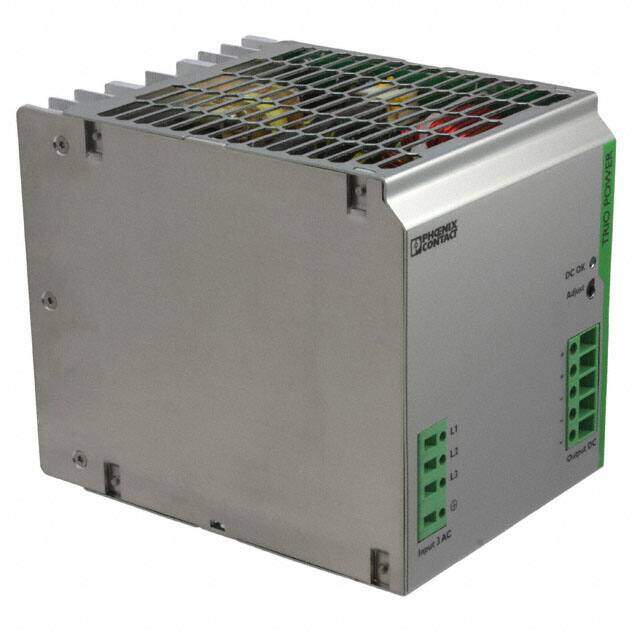

2866394
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 480W
PDF
/
Buying Options
Total Price: USD $514.11
Unit Price: USD $514.1136
≥1 USD $514.1136
≥10 USD $472.98328
Inventory: 59
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 130.048mm
Technical
Min Output Voltage 22.5V
Current - Output 1 20A
Max Input Voltage 575V
Min Input Voltage 320V
Max Output Voltage 29.5V
Output Power 480W
Output Current 20A
Voltage - Input 320V~575VAC 3 Phase 360V~575VAC 2 Phase
Max Output Current 20A
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 91%
Approval Agency cULus, cURus, UL
Number of Outputs 1
Depth 130mm
Max Power Dissipation 480W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature IP20, Universal Input
Size / Dimension 6.00Lx4.53W x 5.12 H 152.5mmx115.0mmx130.0mm
Series TRIO
Published 2010
Operating Temperature -25°C~70°C
Physical
Weight 1.999889kg
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
