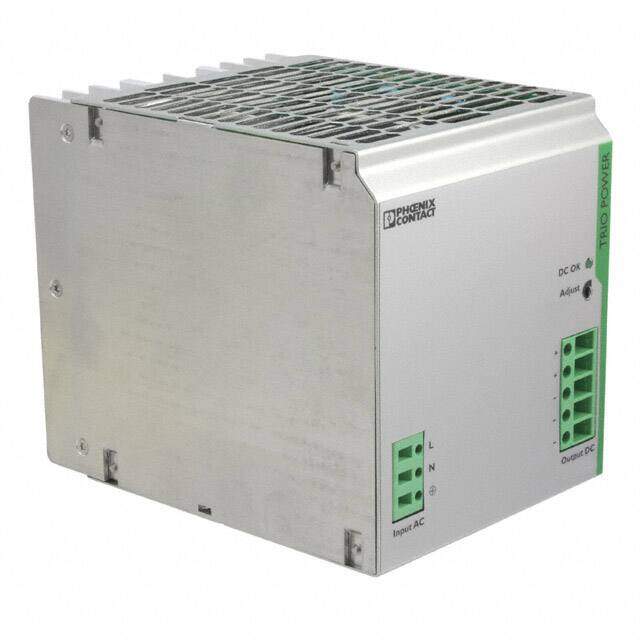

2866381
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 480W
PDF
/
Buying Options
Total Price: USD $542.16
Unit Price: USD $542.1592
≥1 USD $542.1592
≥10 USD $498.78488
Inventory: 60
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 2.199923kg
Technical
Operating Temperature -25°C~70°C
Published 2008
Series TRIO
Size / Dimension 6.00Lx4.53W x 5.12 H 152.5mmx115.0mmx130.0mm
Feature IP20, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 480W
Max Power Dissipation 480W
Depth 130mm
Number of Outputs 1
Approval Agency cULus, cURus, UL
Efficiency 91%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 20A
Voltage - Output 1 24V
Current - Output (Max) 20A
Voltage - Input 100V~240VAC
Output Current 20A
Output Power 480W
Max Output Voltage 29.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 20A
Min Output Voltage 22.5V
Dimensions
Height 130.048mm
Length 152.4mm
Width 115.062mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
