RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters

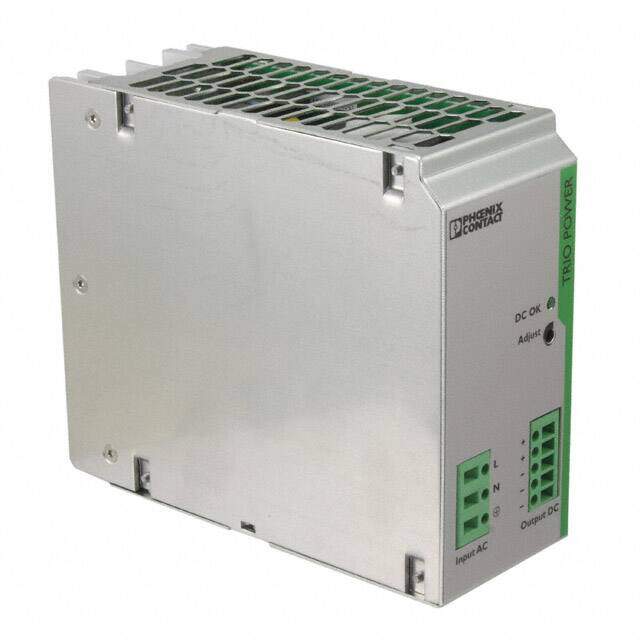

Description AC/DC CONVERTER 24V 240W
PDF
/
Buying Options
Total Price: USD $347.18
Unit Price: USD $347.1776
≥1 USD $347.1776
≥10 USD $319.4004
Inventory: 160
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 59.944mm
Length 152.4mm
Height 130.048mm

Technical

Min Output Voltage 22.5V
Current - Output 1 10A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 29.5V
Output Power 240W
Output Current 10A
Voltage - Input 100V~240VAC
Current - Output (Max) 10A
Voltage - Output 1 24V
Max Output Current 10A
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 89%
Approval Agency cULus, cURus, UL
Number of Outputs 1
Depth 130mm
Max Power Dissipation 240W
Power (Watts) 240W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature IP20, Universal Input
Size / Dimension 6.00Lx2.36W x 5.12 H 152.5mmx60.0mmx130.0mm
Series TRIO
Published 2008
Operating Temperature -25°C~70°C

Physical

Weight 1.399786kg
Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 7 Weeks
