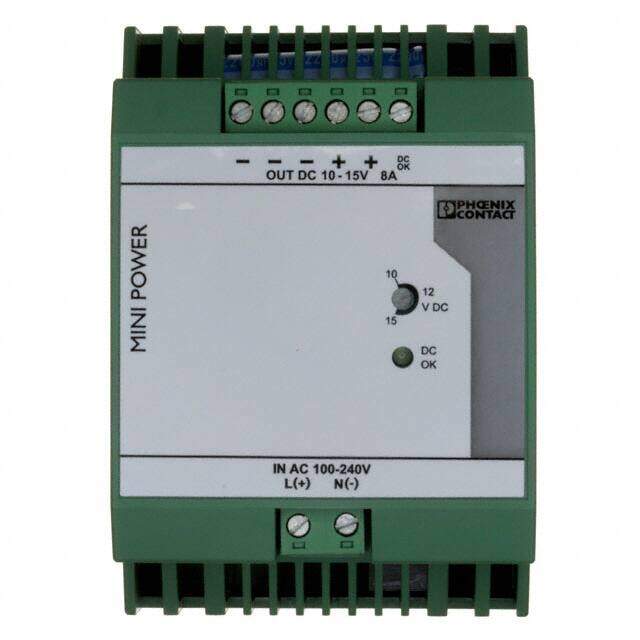

2866297
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 120W
PDF
/
Buying Options
Total Price: USD $286.92
Unit Price: USD $286.921421
≥1 USD $286.921421
≥10 USD $270.680588
≥100 USD $255.359038
≥500 USD $240.904757
≥1000 USD $227.268644
Inventory: 1175
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case 100
Weight 400.000006g
Technical
Operating Temperature -25°C~70°C With Derating
Packaging Box
Published 2004
Series MINI
Size / Dimension 4.21Lx2.66W x 3.90 H 107.0mmx67.5mmx99.0mm
Feature Adjustable Output, Load Sharing, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 120W
Max Power Dissipation 120W
Depth 99mm
Frequency 65Hz
Number of Outputs 1
Approval Agency cULus, cURus
Efficiency 88%
Voltage - Isolation 4kV
Output Voltage 12V
Max Output Current 8A
Voltage - Output 1 12V
Current - Output (Max) 8A
Voltage - Input 100V~240VAC
Output Current 8A
Output Power 100W
Max Output Voltage 15V
Voltage - Output 2 10V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 8A
Voltage - Output 3 15V
Min Output Voltage 10V
Current - Output 2 8A
Current - Output 3 8A
Dimensions
Height 99mm
Length 114.5mm
Width 67.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
