RoHS
RoHS RoHS compliant
Package 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters

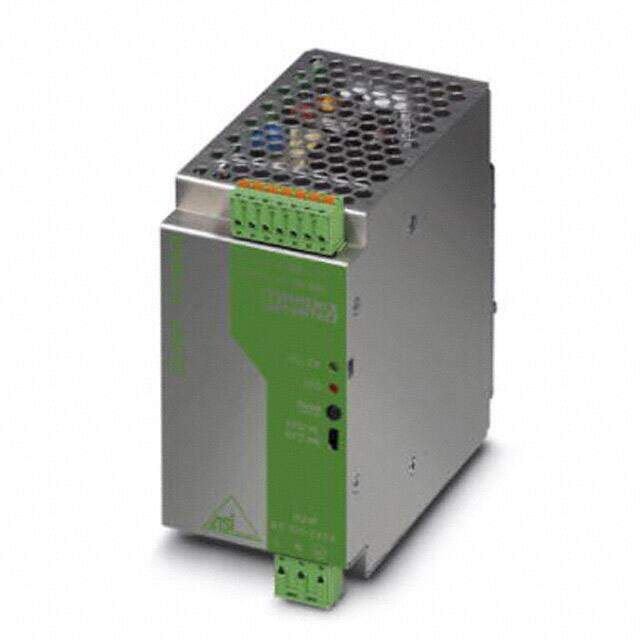

Description DIN Rail Power Supplies 4.8A AS INTERFACE
PDF
/
Inventory: 1149
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Mount DIN Rail
Mounting Type DIN Rail
Package / Case 100
Weight 907.18474g

Technical

Operating Temperature -25°C~70°C With Derating
Published 2011
Series Quint
Size / Dimension 4.92Lx2.76W x 5.70 H 125.0mmx70.0mmx145.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 181W
Depth 145mm
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 89%
Voltage - Isolation 4kV
Output Voltage 30.1V
Max Output Current 6A
Voltage - Input 85V~264VAC
Output Current 6A
Max Output Voltage 30.1V
Min Input Voltage 100V
Max Input Voltage 240V
Current - Output 1 4.8A
Min Output Voltage 30.1V
Minimum Load Required No

Dimensions

Height 144.78mm

Compliance

RoHS Status RoHS Compliant
Ratings IP20
