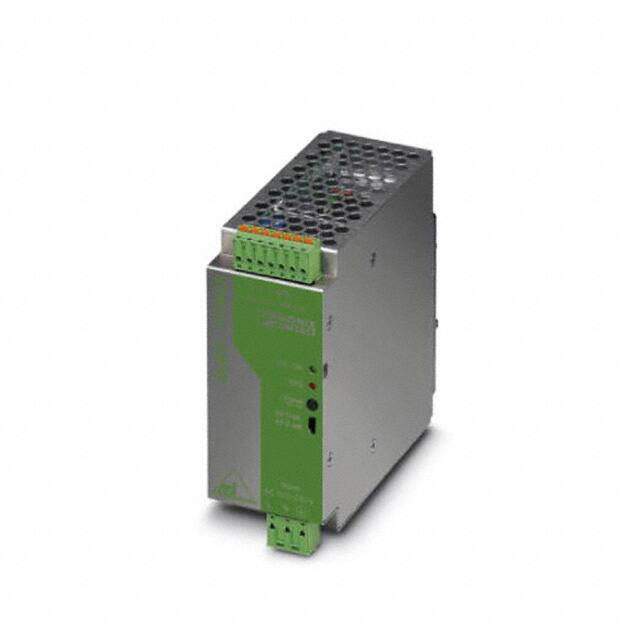

2736686
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
DIN Rail Power Supplies ASI QUINT 100-240AC 2.4/EFD
PDF
/
Inventory: 1198
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP20
RoHS Status RoHS Compliant
Dimensions
Width 55mm
Length 125mm
Height 145mm
Technical
Minimum Load Required No
Min Output Voltage 30.1V
Current - Output 1 2.4A
Max Input Voltage 240V
Min Input Voltage 100V
Max Output Voltage 30.1V
Output Current 3A
Voltage - Input 85V~264VAC
Current - Output (Max) 2.4A
Voltage - Output 1 30.1V
Max Output Current 2.4A
Output Voltage 30.1V
Voltage - Isolation 4kV
Efficiency 86%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Depth 145mm
Max Power Dissipation 72W
Power (Watts) 72W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx2.17W x 5.71 H 125.0mmx55.0mmx145.0mm
Series Quint
Published 2004
Operating Temperature -25°C~70°C With Derating
Physical
Weight 1.290017kg
Package / Case 100
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
