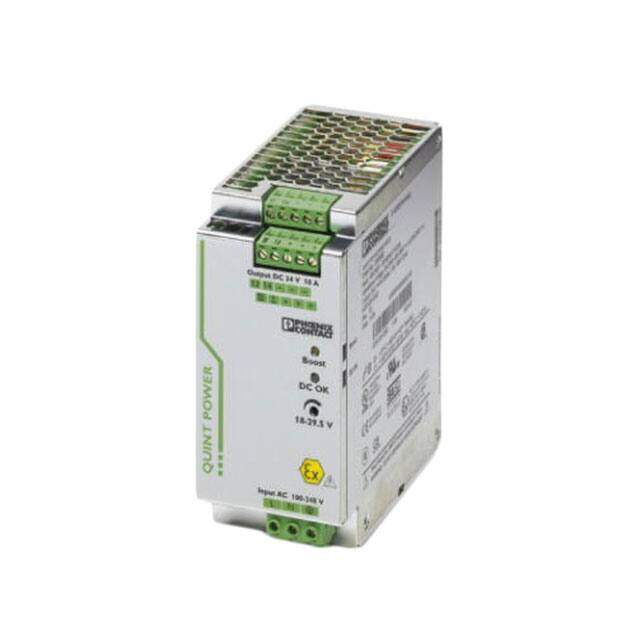

2320911
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
DIN Rail Power Supplies QUINT-PS/ 1AC/24DC/ 10/CO DIP COATED SFB
PDF
/
Buying Options
Total Price: USD $587.73
Unit Price: USD $587.7256
≥1 USD $587.7256
≥10 USD $540.70368
Inventory: 135
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 59.944mm
Length 125mm
Height 130.048mm
Technical
Min Output Voltage 18V
Current - Output 1 10A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 29.5V
Output Power 9.1W
Output Current 10A
Voltage - Input 85V~264VAC
Current - Output (Max) 10A
Voltage - Output 1 24V
Max Output Current 10A
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 92.5%
Approval Agency CB, CSA, cULus, cRUus
Number of Outputs 1
Depth 60mm
Max Power Dissipation 240W
Power (Watts) 240W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx2.36W x 5.12 H 125.0mmx60.0mmx130.0mm
Series Quint
Published 2011
Operating Temperature -40°C~70°C With Derating
Physical
Weight 1.50003kg
Number of Pins 13
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
