2320908
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

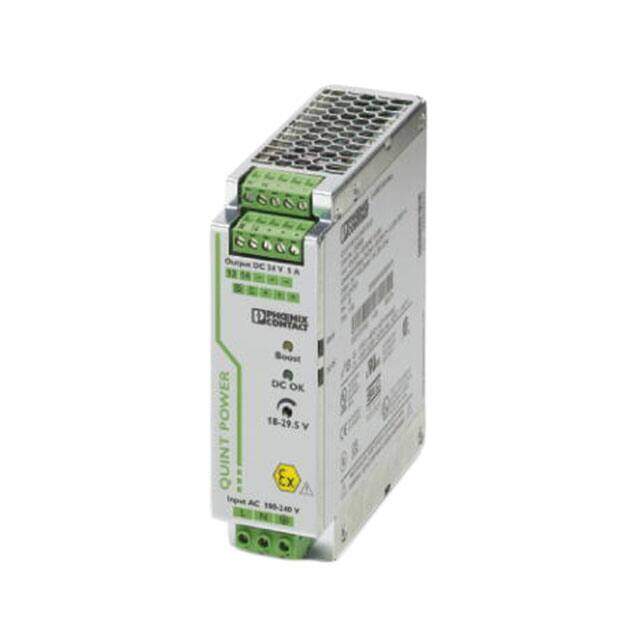

DIN Rail Power Supplies QUINT-PS / 1AC/24DC/ 5/CO
PDF
/
Buying Options
Total Price: USD $463.28
Unit Price: USD $463.276
≥1 USD $463.276
≥10 USD $426.21216
Inventory: 131
Minimum: 1
-
+
Technical Details
Technical
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 5A
Min Output Voltage 18V
Max Output Power 120W
Min Input Voltage (AC) 85V
Max Output Voltage 29.5V
Output Power 120W
Output Current 5A
Voltage - Input 85V~264VAC
Current - Output (Max) 5A
Max Voltage Rating (AC) 264V
Voltage - Output 1 24V
Max Output Current 5A
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency CB, CSA, cULus, cRUus
Number of Outputs 1
Depth 130mm
Max Power Dissipation 120W
Power (Watts) 120W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx1.57W x 5.12 H 125.0mmx40.0mmx130.0mm
Series Quint
Published 2011
Operating Temperature -40°C~70°C With Derating
Dimensions
Height 130.048mm
Length 124.968mm
Width 39.878mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Physical
Weight 700g
Package / Case 120
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
