2320827
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

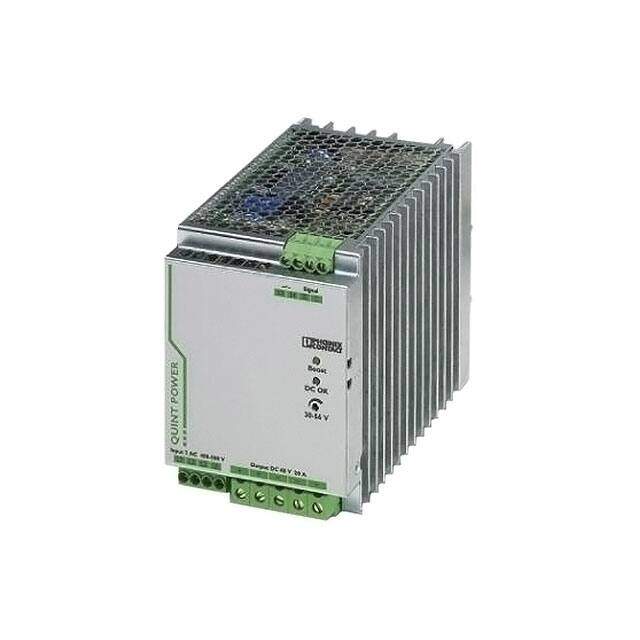

DIN Rail Power Supplies QUINT-PS/ 3AC/48DC/20
PDF
/
Buying Options
Total Price: USD $978.43
Unit Price: USD $978.428
≥1 USD $978.428
Inventory: 94
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Height 130.048mm
Technical
Min Input Voltage (AC) 320V
Minimum Load Required No
Max Output Power 960W
Min Output Voltage 30V
Current - Output 1 20A
Max Input Voltage 575V
Min Input Voltage 320V
Max Output Voltage 56V
Output Power 960W
Output Current 20A
Voltage - Input 320V~575VAC 3 Phase 360V~575VAC 2 Phase 450V~800VDC
Max Voltage Rating (AC) 575V
Voltage - Output 1 48V
Max Output Current 20A
Voltage - Isolation 4kV
Efficiency 93%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Depth 130mm
Max Power Dissipation 960W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 6.93Lx3.78W x 5.12 H 176.0mmx96.0mmx130.0mm
Series Quint
Published 2011
Operating Temperature -25°C~70°C With Derating
Physical
Weight 2.960144kg
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
