2320199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

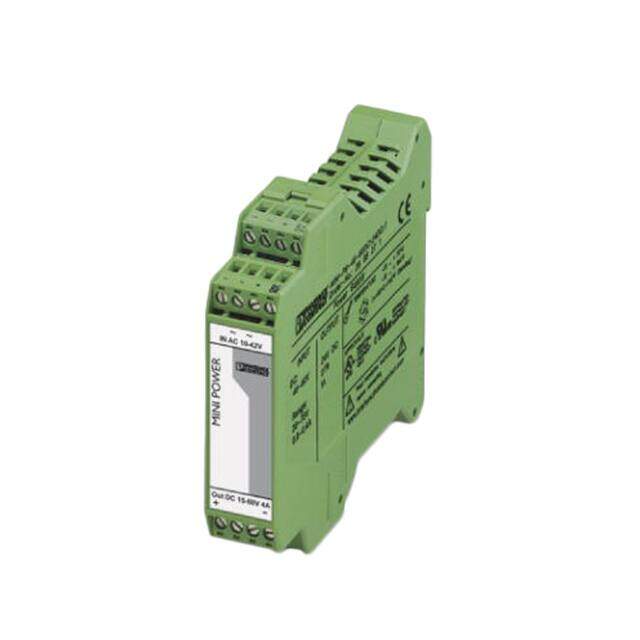

DIN Rail Power Supplies MINI-PS- 10 42AC/15-60DC/3
PDF
/
Buying Options
Total Price: USD $140.88
Unit Price: USD $140.884421
≥1 USD $140.884421
≥10 USD $132.909834
≥100 USD $125.386635
≥500 USD $118.289279
≥1000 USD $111.593663
Inventory: 1132
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Chassis Mount
Mounting Type DIN Rail
Weight 160.000002g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2014
Series MINI
Size / Dimension 4.21Lx0.89W x 3.90 H 107.0mmx22.5mmx99.0mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Linear
Applications ITE (Commercial)
Power (Watts) 84W
Additional Feature ADDITIONAL 60V OUTPUT AVAILABLE
Max Power Dissipation 24W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 99mm
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code X-XXMA-X
Number of Outputs 1
Efficiency 95.7%
Voltage - Isolation 3kV
Output Voltage 28V
Max Output Current 120mA
Voltage - Output 1 28V
Input Voltage-Nom 24V
Voltage - Input 10V~42VAC
Output Current 3A
Max Output Voltage 60V
Min Input Voltage 10V
Max Input Voltage 42V
Current - Output 1 3A
Total Power Output-Max 84W
Min Output Voltage 15V
Dimensions
Height 41.148mm
Compliance
RoHS Status RoHS Compliant
