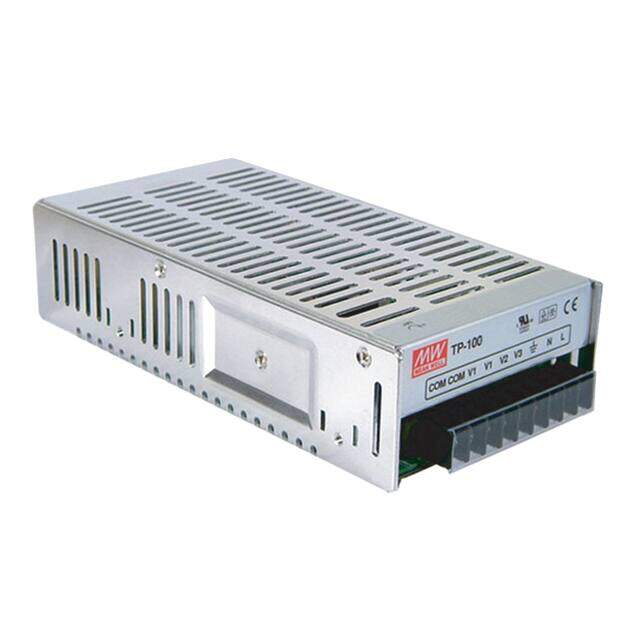

TP-100A image
Favorite
TP-100A image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description AC/DC CONVERTER 5V 12V -5V 101W
PDF
/
Inventory: 4025
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Approval Agency CB, CE, cURus, TUV
Efficiency 75%
Voltage - Isolation 3kV
Voltage - Output 1 5V
Current - Output (Max) 10A 4A 600mA
Voltage - Input 90V~264VAC 127V~370VDC
Output Current 10A
Voltage - Output 2 12V
Current - Output 1 10A
Voltage - Output 3 -5V
Max Output Power 100W
Minimum Load Required Yes
Max Input Current 1.5A
Number of Outputs 3
Power (Watts) 101W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Pbfree Code no
Feature Adjustable Output, PFC, Universal Input
Size / Dimension 7.83Lx3.90W x 1.97 H 199.0mmx99.0mmx50.0mm
Series TP-100 (100W)
Operating Temperature -10°C~60°C With Derating
Current - Output 3 600mA
Current - Output 2 4A

Physical

Number of Pins 9
Mounting Type Chassis Mount
Mount Desktop

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 50.8mm
