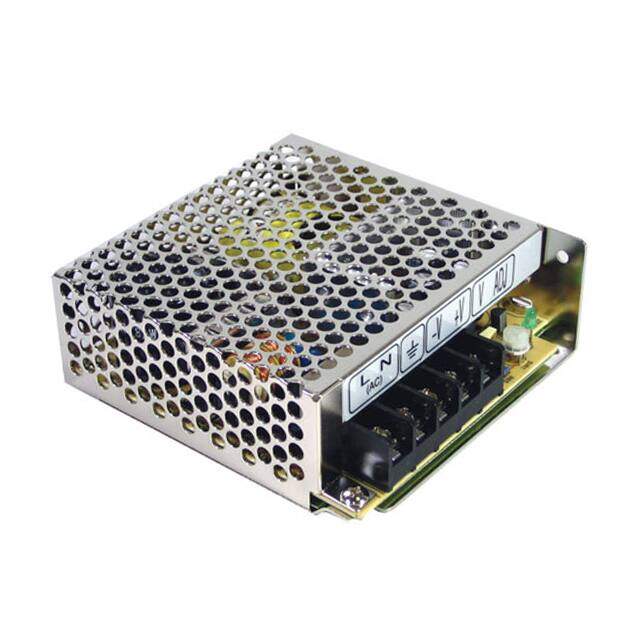

RT-50A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 12V -5V 47W
PDF
/
Buying Options
Total Price: USD $17.83
Unit Price: USD $17.8288
≥1 USD $17.8288
≥10 USD $17.30432
≥100 USD $16.78072
≥500 USD $16.256064
Inventory: 86
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Chassis
Mounting Type Chassis Mount
Number of Pins 8
Technical
Operating Temperature -25°C~70°C With Derating
Series RT-50 (50W)
Size / Dimension 3.90Lx3.82W x 1.42 H 99.0mmx97.0mmx36.0mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 47W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXMA-X9
Number of Outputs 3
Approval Agency CB, CE, cURus, TUV
Efficiency 77%
Voltage - Isolation 3kV
Output Voltage 5V
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Current - Output (Max) 4A 2A 500mA
Voltage - Input 88V~264VAC 125V~373VDC
Output Current 4A
Output Power 46.5W
Voltage - Output 2 12V
Current - Output 1 4A
Voltage - Output 3 -5V
Max Output Power 46.5W
Minimum Load Required Yes
Max Input Current 1.3A
Current - Output 2 2A
Current - Output 3 500mA
Dimensions
Height 36mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
