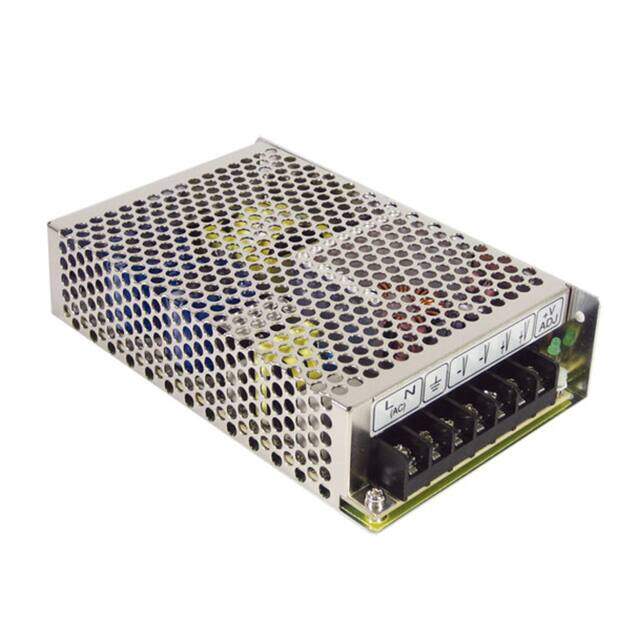

RID-85A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 12V 88W
PDF
/
Buying Options
Total Price: USD $31.58
Unit Price: USD $31.5832
≥1 USD $31.5832
≥10 USD $30.6504
≥100 USD $29.72112
≥500 USD $28.792544
Inventory: 57
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Desktop
Mounting Type Chassis Mount
Number of Pins 7
Technical
Operating Temperature -25°C~70°C With Derating
Series RID-85 (85W)
Size / Dimension 6.26Lx3.82W x 1.50 H 159.0mmx97.0mmx38.0mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Color Silver
Applications ITE (Commercial)
Number of Outputs 2
Approval Agency CB, CE, cURus, TUV
Efficiency 80%
Voltage - Isolation 3kV
Voltage - Output 1 5V
Current - Output (Max) 8A 4A
Voltage - Input 88V~264VAC 125V~373VDC
Output Current 8A
Voltage - Output 2 12V
Max Output Power 88W
Minimum Load Required Yes
Max Input Current 2.5A
Dimensions
Height 38.1mm
Compliance
RoHS Status ROHS3 Compliant
