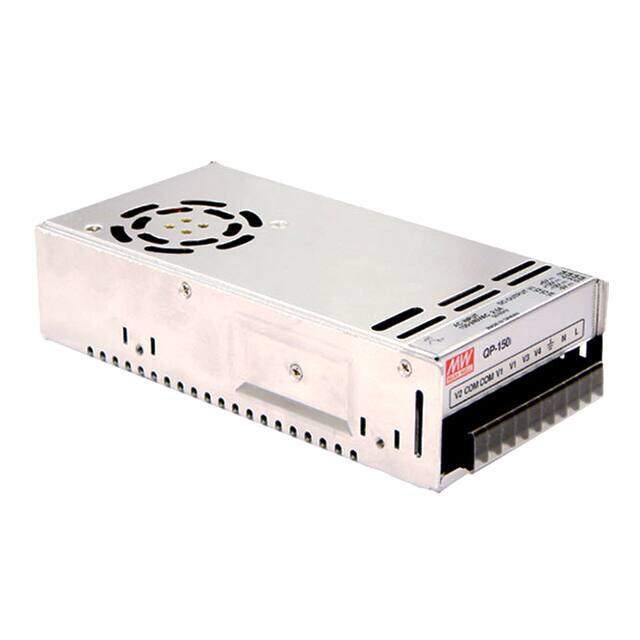

QP-150F
RoHS
RoHS compliant
RoHS compliantPackage 600
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CNVRTR 5V 15V 24V -15V
PDF
/
Buying Options
Total Price: USD $90.54
Unit Price: USD $90.536267
≥1 USD $90.536267
≥10 USD $85.411574
≥100 USD $80.576961
≥500 USD $76.015999
≥1000 USD $71.713204
Inventory: 1120
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Desktop
Mounting Type Chassis Mount
Package / Case 600
Number of Pins 10
Weight 930g
Technical
Operating Temperature -10°C~60°C With Derating
Series QP-150 (150W)
Size / Dimension 7.83Lx3.90W x 1.97 H 199.0mmx99.0mmx50.0mm
Feature Adjustable Output, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Power Rating 152W
Depth 50mm
Number of Outputs 4
Approval Agency CB, CE, cURus, TUV
Efficiency 74%
Voltage - Isolation 3kV
Output Voltage 24V
Voltage - Output 1 5V
Current - Output (Max) 10A 3A 2A 600mA
Voltage - Input 90V~264VAC 127V~370VDC
Output Current 10A
Voltage - Output 2 15V
Current - Output 1 10A
Max Output Power 152W
Voltage - Output 4 -15V
Minimum Load Required Yes
Max Input Current 2.5A
Current - Output 2 3A
Current - Output 3 2A
Dimensions
Height 38.1mm
Compliance
RoHS Status ROHS3 Compliant
