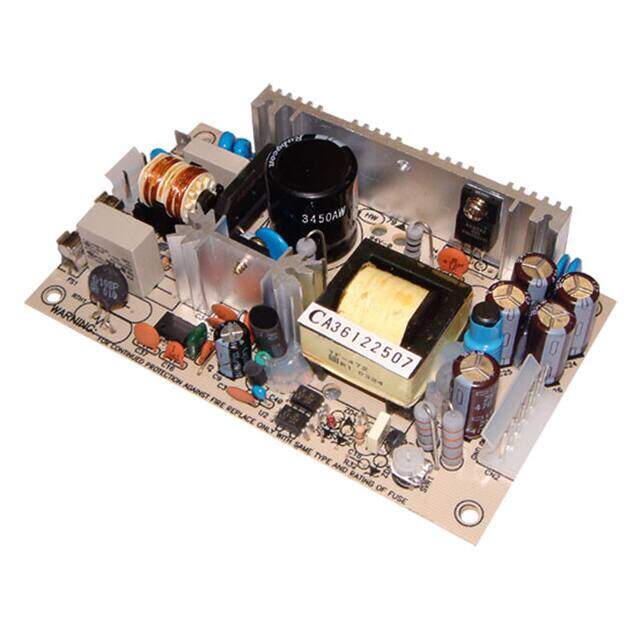

PT-45B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V +/-12V 43W
PDF
/
Buying Options
Total Price: USD $16.02
Unit Price: USD $16.016
≥1 USD $16.016
≥10 USD $15.54608
≥100 USD $15.0744
≥500 USD $14.603072
Inventory: 204
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Screw
Mounting Type Chassis Mount
Number of Pins 8
Technical
Operating Temperature -10°C~60°C With Derating
Series PT-45 (45W)
Size / Dimension 5.00Lx2.99W x 1.10 H 127.0mmx76.0mmx28.0mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 43W
Depth 76mm
Number of Outputs 3
Approval Agency CB, CE, cURus, TUV
Efficiency 75%
Voltage - Isolation 3kV
Output Voltage 5V
Current - Output (Max) 3A 2A 300mA
Voltage - Input 90V~264VAC 127V~370VDC
Output Current 3A
Output Power 42.6W
Voltage - Output 2 12V
Current - Output 1 3A
Voltage - Output 3 -12V
Max Output Power 42.6W
Minimum Load Required Yes
Max Input Current 1A
Current - Output 2 2A
Current - Output 3 300mA
Dimensions
Height 27.94mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
