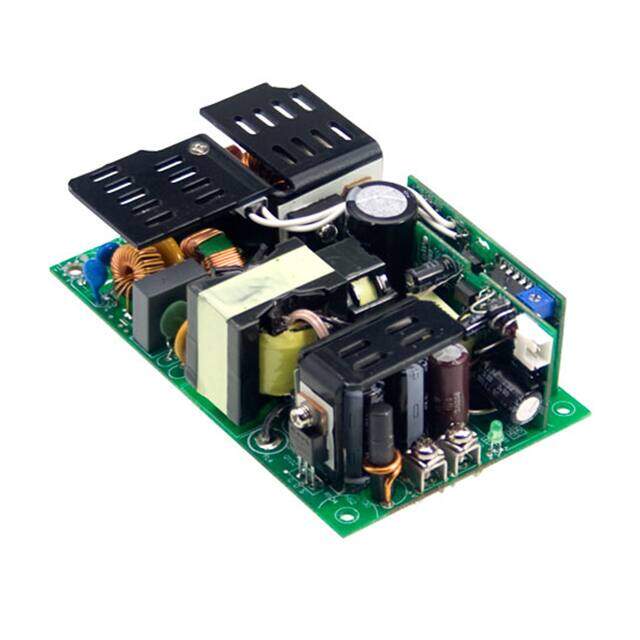

EPP-300-48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 200W
PDF
/
Buying Options
Total Price: USD $61.3
Unit Price: USD $61.3008
≥1 USD $61.3008
≥10 USD $59.44224
≥100 USD $57.58544
≥500 USD $55.727936
Inventory: 313
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Panel, Screw
Mounting Type Chassis Mount
Number of Pins 15
Weight 370.000002g
Technical
Operating Temperature -30°C~70°C With Derating
Packaging Bulk
Series EPP-300 (300W)
Size / Dimension 5.00Lx3.00W x 1.38 H 127.0mmx76.2mmx35.0mm
Feature Adjustable Output, PFC, Remote Sense, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 200W 300W Forced Air
Power Rating 300W
Depth 76.2mm
Number of Outputs 1
Approval Agency CB, CE, cURus, TUV
Efficiency 93%
Voltage - Isolation 3kV
Output Voltage 48V
Current - Output (Max) 4.17A
Voltage - Input 90V~264VAC 127V~370VDC
Output Current 6.25A
Output Power 300W
Current - Output 1 6.25A
Max Output Power 300W
Minimum Load Required No
Max Input Current 3.9A
Dimensions
Height 35.052mm
Compliance
RoHS Status ROHS3 Compliant
