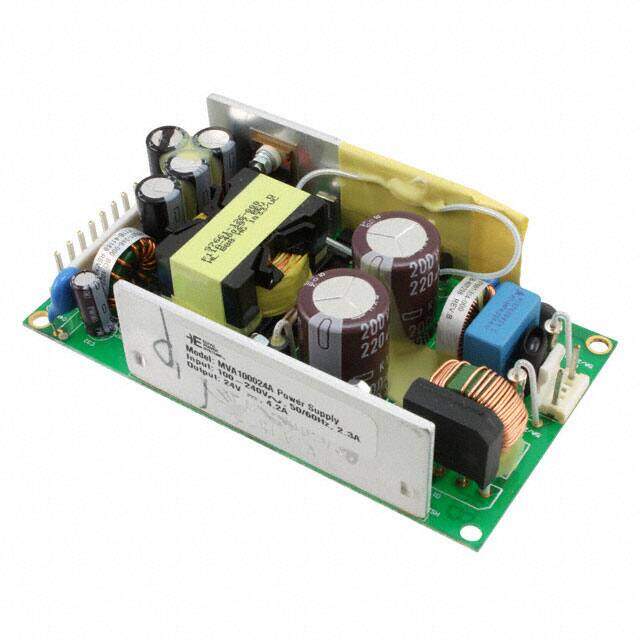

MVA100015A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 15V 100W
PDF
/
Buying Options
Total Price: USD $56.65
Unit Price: USD $56.6544
≥1 USD $56.6544
Inventory: 61
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Minimum Load Required No
Voltage - Input 85V~264VAC
Current - Output (Max) 6.7A
Voltage - Output 1 15V
Efficiency 90%
Approval Agency CB, CE, cTUVus
Number of Outputs 1
Power (Watts) 100W 120W Forced Air
Applications Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Universal Input
Size / Dimension 4.50Lx2.50W x 1.10 H 114.3mmx63.1mmx28.5mm
Series MVA100 (100W)
Published 2016
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 18 Weeks
