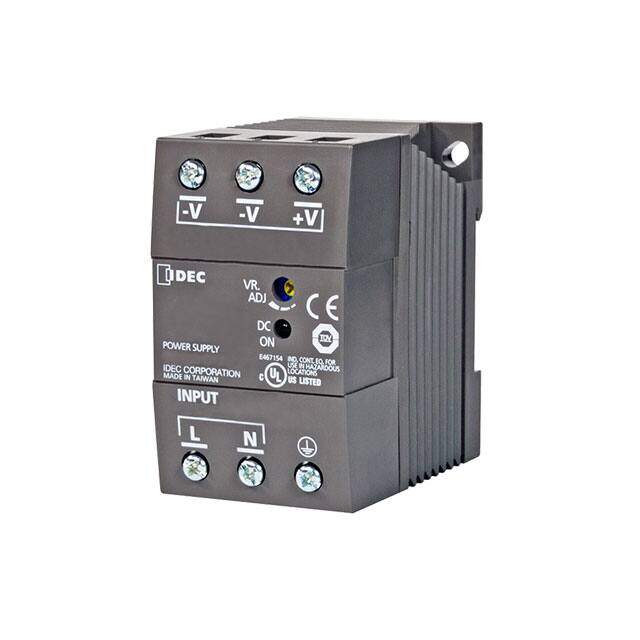

PS5R-VD24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
POWER SUPPLY 60W 24VDC DIN
PDF
/
Buying Options
Total Price: USD $66.71
Unit Price: USD $66.7128
≥1 USD $66.7128
≥10 USD $61.94584
≥100 USD $60.993152
≥500 USD $59.086896
≥1000 USD $55.274912
Inventory: 488
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Technical
Min Input Voltage (AC) 85V
Max Output Power 60W
Current - Output 1 2.5A
Output Power 60W
Voltage - Input 85V~264VAC 100V~370VDC
Max Voltage Rating (AC) 264V
Trim/Adjustable Output YES
Input Voltage-Nom 100V
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 86%
Approval Agency CE, cULus, TUV
Number of Outputs 1
JESD-30 Code R-XXMA-X6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Applications Hazardous Locations, Industrial, ITE (Commercial)
Type Enclosed
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, IP20, Universal Input
Size / Dimension 4.25Lx1.42W x 3.74 H 108.0mmx36.0mmx95.0mm
Series PS5R-V (60W)
Published 2015
Operating Temperature -25°C~70°C With Derating
Physical
Surface Mount NO
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
