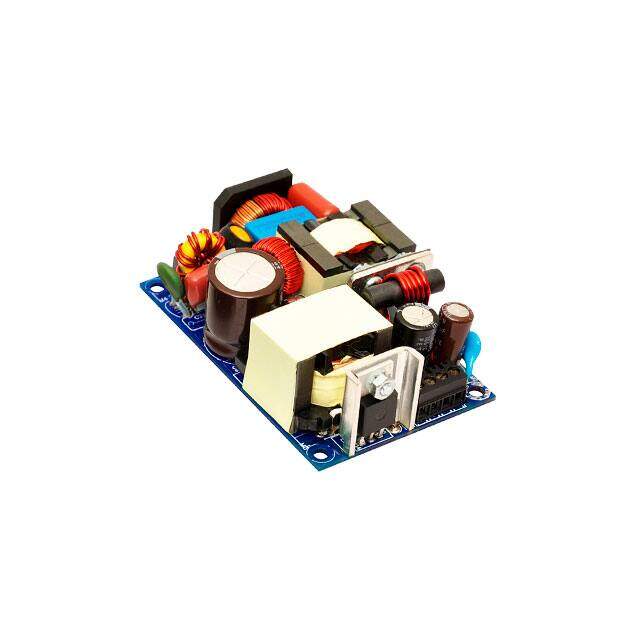

WLP75-1304
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
LOW PROFILE 1.0IN HEIGHT 2X3 75W
PDF
/
Inventory: 930
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~70°C With Derating
Series WLP75 (75W)
Size / Dimension 3.00Lx2.00W x 1.00 H 76.2mmx50.8mmx25.4mm
Feature Adjustable Output, PFC, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 75W
Number of Outputs 1
Approval Agency CB, CCC, CE, cUL, NEMKO, UL
Efficiency 93%
Voltage - Isolation 3kV
Voltage - Output 1 48V
Current - Output (Max) 1.56A
Voltage - Input 85V~264VAC 390VDC
Minimum Load Required No
Compliance
RoHS Status RoHS Compliant
