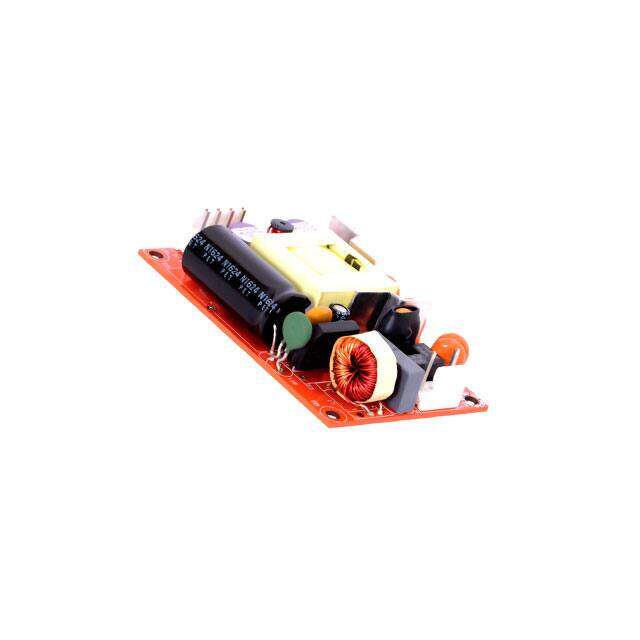

ULP40-1348
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
ULTRA LOW PROFILE 0.75IN HEIGHT
PDF
/
Buying Options
Total Price: USD $26.41
Unit Price: USD $26.4088
≥1 USD $26.4088
≥10 USD $25.6344
≥100 USD $24.85824
≥500 USD $24.081024
≥1000 USD $23.304336
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~70°C With Derating
Series ULP40 (40W)
Size / Dimension 3.00Lx2.00W x 0.75 H 76.2mmx50.8mmx19.1mm
Feature Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 40W
Number of Outputs 1
Approval Agency CB, CE, cUL, NEMKO, UL
Efficiency 85%
Voltage - Isolation 4.242kV
Voltage - Output 1 48V
Current - Output (Max) 830mA
Voltage - Input 85V~264VAC 390VDC
Minimum Load Required No
Compliance
RoHS Status RoHS Compliant
