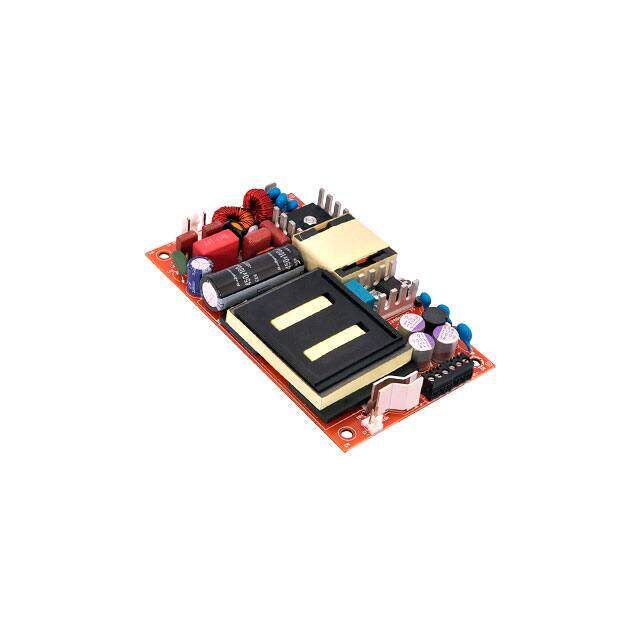

ULP275-0312
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
ULTRA LOW PROFILE 0.75IN HEIGHT
PDF
/
Buying Options
Total Price: USD $102.95
Unit Price: USD $102.9512
≥1 USD $102.9512
≥10 USD $90.27891
Inventory: 38
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~70°C With Derating
Series ULP275 (275W)
Size / Dimension 5.00Lx3.50W x 0.75 H 127.0mmx88.9mmx19.1mm
Feature Adjustable Output, PFC, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 160W 275W Forced Air
Number of Outputs 1
Approval Agency CB, CE, cUL, NEMKO, UL
Efficiency 88%
Voltage - Isolation 3kV
Voltage - Output 1 12V
Current - Output (Max) 13.33A
Voltage - Input 80V~264VAC 390VDC
Minimum Load Required No
Compliance
RoHS Status RoHS Compliant
