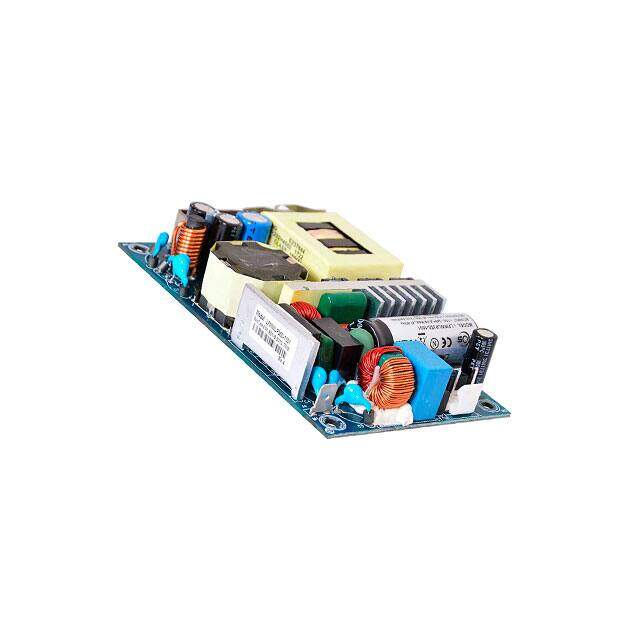

MWLP350-1303
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
MEDICAL LOW PROFILE 1.0IN HEIGHT
PDF
/
Inventory: 4544
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Minimum Load Required No
Voltage - Input 90V~264VAC 390VDC
Current - Output (Max) 8.33A
Voltage - Output 1 24V
Voltage - Isolation 4kV
Efficiency 93%
Approval Agency CB, CE, cUL, NEMKO, UL
Number of Outputs 1
Power (Watts) 200W 350W Forced Air
Applications Medical
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, PFC, Standby Output, Universal Input
Size / Dimension 5.00Lx3.00W x 1.00 H 127.0mmx76.2mmx25.4mm
Series MWLP350 (350W)
Operating Temperature -40°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 14 Weeks
