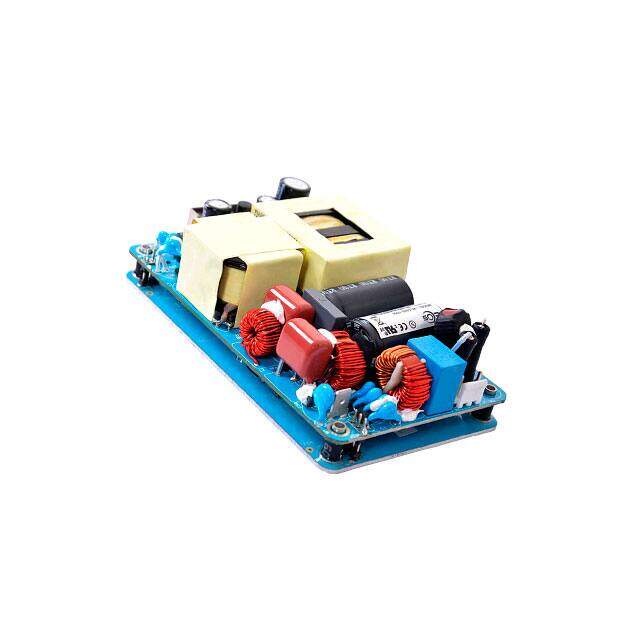

MWLC550-1015
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
MEDICAL LOW PROFILE 1.5IN HEIGHT
PDF
/
Buying Options
Total Price: USD $150.5
Unit Price: USD $150.4976
≥1 USD $150.4976
≥10 USD $131.686342
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Minimum Load Required No
Voltage - Input 90V~264VAC 390VDC
Current - Output (Max) 13.33A
Voltage - Output 1 15V
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency CB, CE, cUL, NEMKO, UL
Number of Outputs 1
Power (Watts) 200W 500W Forced Air
Applications Medical
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, PFC, Universal Input
Size / Dimension 5.00Lx3.00W x 1.50 H 127.0mmx76.2mmx38.1mm
Series MWLC550 (550W)
Operating Temperature -40°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 14 Weeks
Alternative Model
