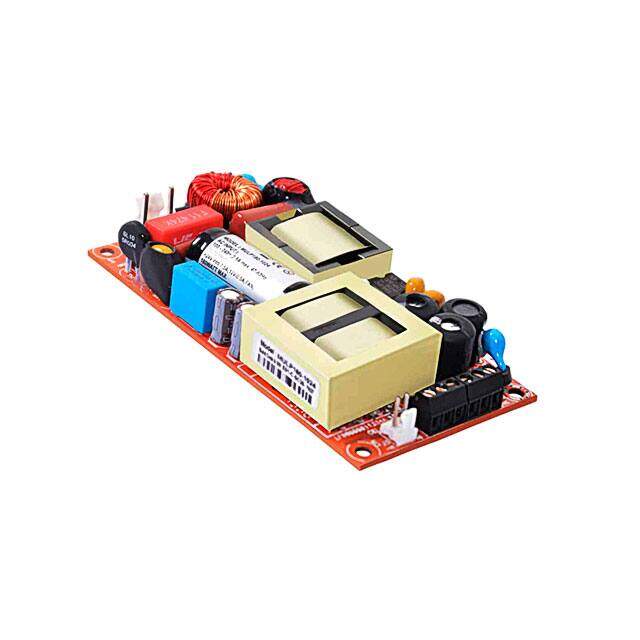

MULP180-1324
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
MEDICAL ULTRA LOW PROFILE 0.75IN
PDF
/
Buying Options
Total Price: USD $93.72
Unit Price: USD $93.72
≥1 USD $93.72
≥10 USD $79.302027
Inventory: 149
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~70°C With Derating
Series MULP180 (180W)
Size / Dimension 4.00Lx2.00W x 0.75 H 101.6mmx50.8mmx19.1mm
Feature Adjustable Output, PFC, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Open Frame
Applications Medical
Power (Watts) 120W 180W Forced Air
Number of Outputs 1
Approval Agency CB, CE, cUL, NEMKO, UL
Efficiency 90%
Voltage - Isolation 4kV
Voltage - Output 1 24V
Current - Output (Max) 5A
Voltage - Input 80V~264VAC 390VDC
Minimum Load Required No
Compliance
RoHS Status RoHS Compliant
