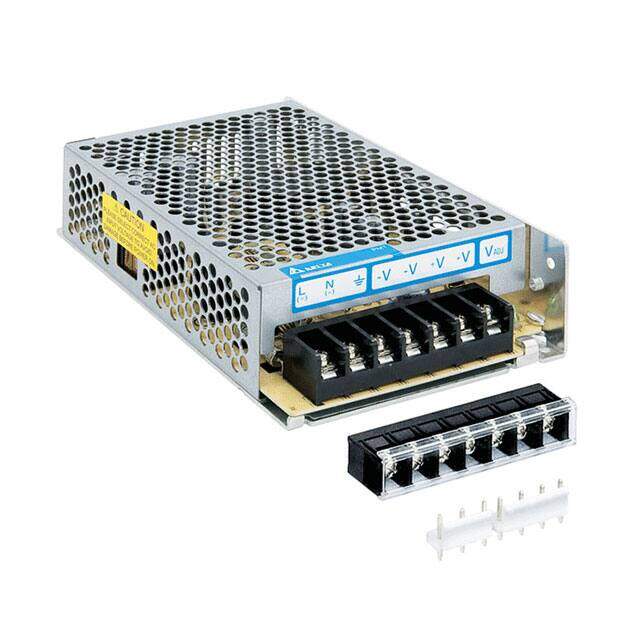

PML-24V100W1AH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 100W
PDF
/
Inventory: 7426
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~70°C With Derating
Published 2006
Series PML (108W)
Size / Dimension 6.22Lx3.82W x 1.50 H 158.0mmx97.0mmx38.0mm
Feature Adjustable Output
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Max Operating Temperature 70°C
Min Operating Temperature -10°C
Applications ITE (Commercial)
Power (Watts) 100W
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CB, CE, CCC, cURus, TUV
Efficiency 86%
Voltage - Isolation 3kV
Max Output Current 4.5A
Voltage - Output 1 24V
Current - Output (Max) 4.5A
Voltage - Input 90V~132VAC 180V~264VAC
Dimensions
Height 38.1mm
Length 157.988mm
Width 97.028mm
Compliance
RoHS Status ROHS3 Compliant
