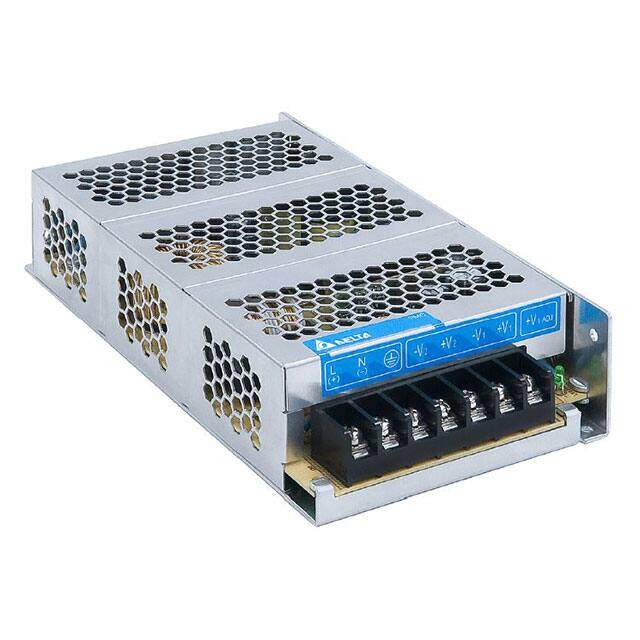

PMC-DSPV100W1A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
POWER SUPPLY 100W 24V PANEL MNT
PDF
/
Inventory: 1162
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 97mm
Length 178mm
Height 38mm
Technical
Current - Output 2 7A
Current - Output 1 2.7A
Voltage - Output 2 5V
Voltage - Input 85V~264VAC
Current - Output (Max) 2.7A 7A
Voltage - Output 1 24V
Max Output Current 7A
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 86%
Approval Agency CB, CCC, CE, cURus, TUVgs
Number of Outputs 2
Max Power Dissipation 100W
Power (Watts) 100W
Applications ITE (Commercial)
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Load Sharing, Universal Input
Size / Dimension 7.01Lx3.82W x 1.50 H 178.0mmx97.0mmx38.0mm
Series PMC (100W)
Published 2011
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 2 Weeks
