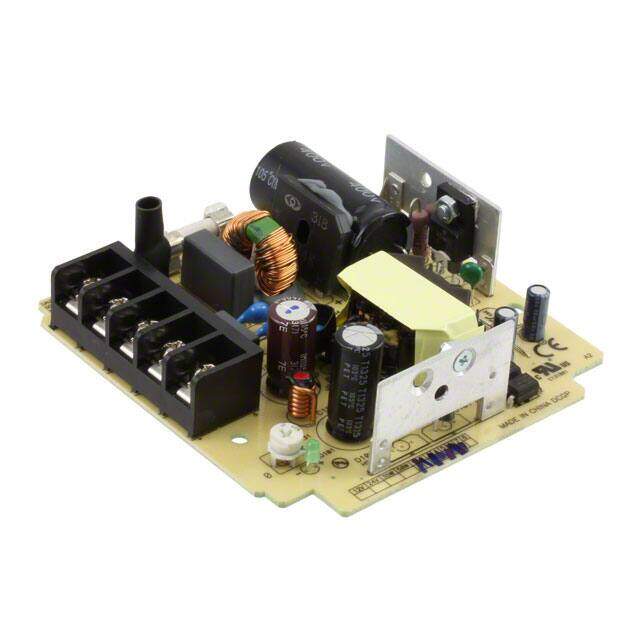

PMB-12V50W1AA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 50W
PDF
/
Buying Options
Total Price: USD $15.97
Unit Price: USD $15.974646
≥1 USD $15.974646
≥10 USD $15.070422
≥100 USD $14.217379
≥500 USD $13.412623
≥1000 USD $12.653411
Inventory: 1172
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 38.1mm
Technical
Current - Output 1 4.17A
Voltage - Input 90V~264VAC
Voltage - Output 1 12V
Max Output Current 4.17A
Voltage - Isolation 3kV
Efficiency 83%
Approval Agency CB, CCC, CE, cURus, TUVgs
Number of Outputs 1
Max Power Dissipation 50W
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 3.86Lx3.82W x 1.50 H 98.0mmx97.0mmx38.0mm
Series PMT (50W)
Operating Temperature -10°C~70°C With Derating
Physical
Weight 229.999993g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 2 Weeks
