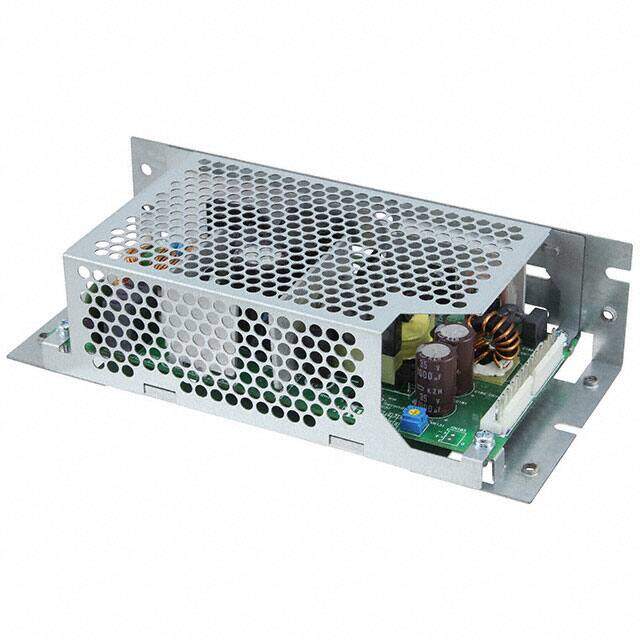

PJB-24V150WCNA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 150W
PDF
/
Inventory: 1207
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 85.09mm
Length 187.96mm
Height 46.99mm
Technical
Current - Output 1 6.3A
Voltage - Input 85V~264VAC
Current - Output (Max) 6.3A
Voltage - Output 1 24V
Max Output Current 6.3A
Voltage - Isolation 3kV
Efficiency 90.5%
Approval Agency CB, CE, cURus, TUV
Number of Outputs 1
Max Power Dissipation 150W
Power (Watts) 150W
Applications ITE (Commercial)
Min Operating Temperature -10°C
Max Operating Temperature 70°C
Type Enclosed, Conformal Coated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, PFC, Universal Input
Size / Dimension 7.40Lx3.35W x 1.85 H 188.0mmx85.0mmx47.0mm
Series PJB (151W)
Operating Temperature -10°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 2 Weeks
